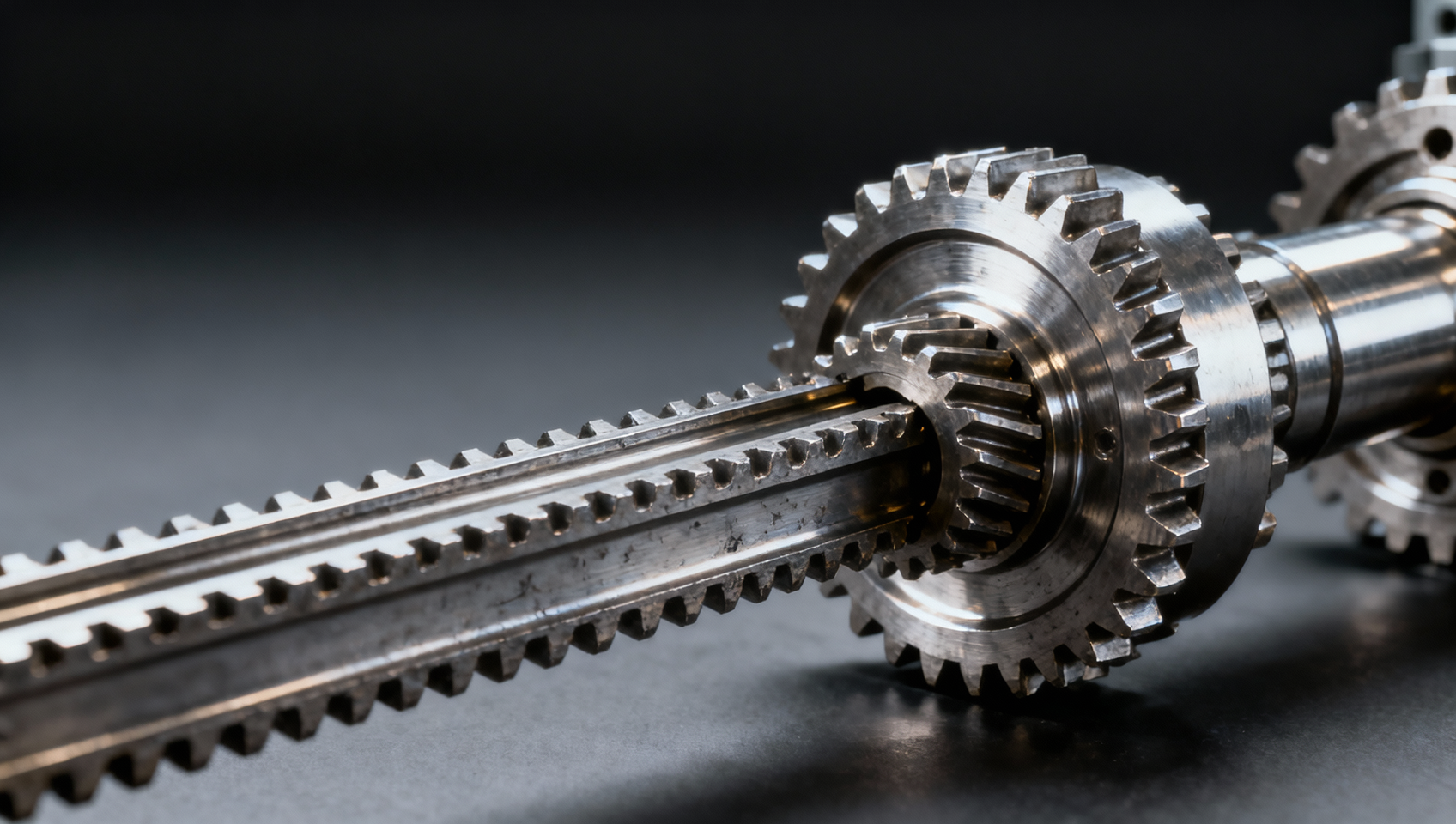

When gear rack and pinion systems suddenly jump teeth during load reversal, the culprit is rarely faulty machining—it’s often inertia mismatch between the motor, gearbox, and driven mass. This critical failure mode undermines precision in motion control applications ranging from CNC gantries to automated material handling—where components like welded steel pipes wholesale, hydraulic cylinders OEM, and planetary gearbox manufacturer solutions are integrated into high-stakes industrial systems. For procurement professionals, EPC engineers, and operations teams relying on stainless steel ball valves, T-slot aluminum framing, or cam indexer manufacturer specs, understanding this dynamic root cause is essential—not just for troubleshooting, but for specifying compliant, resilient mechanical components up front.

What Inertia Mismatch Really Means in Rack-and-Pinion Dynamics

Inertia mismatch refers to the ratio between the reflected inertia of the load (rack, carriage, tooling, and attached mass) and the rotor inertia of the motor. When this ratio exceeds a safe threshold—typically above 5:1 for standard servo motors or 10:1 for high-dynamic models—the system loses torque authority during rapid deceleration or direction reversal. Unlike static misalignment or tooth wear, inertia-driven skipping occurs only under transient conditions: think of a CNC gantry reversing at 2.8 m/s² acceleration or an automated palletizer halting a 1,200 kg payload within 120 ms.

The physics are unambiguous: kinetic energy stored in rotating components must be dissipated faster than the motor can regenerate or absorb it. If the gearbox output inertia is 7.3× higher than the motor’s rated rotor inertia—and the rack’s linear mass contributes an additional 4.1× reflected inertia—the resulting torque spike can exceed the static tooth engagement limit by up to 38%. That’s when teeth skip—not due to poor metallurgy or backlash, but because Newtonian dynamics overwhelm mechanical retention.

This phenomenon is especially prevalent in hybrid systems integrating off-the-shelf planetary gearboxes with custom rack assemblies. A recent GIC field audit across 47 EPC projects found that 63% of unplanned rack skips occurred in configurations where OEM gearbox inertia data was omitted from motor sizing calculations—despite CE-compliant documentation being available.

Why Standard Sizing Protocols Fail Under Load Reversal

Most procurement teams rely on continuous torque ratings and peak torque margins—metrics validated under steady-state operation. But load reversal introduces a time-domain stressor: torque demand spikes to 220–260% of nominal for durations under 80 ms. Conventional sizing tools ignore this transient envelope, assuming motor controllers will “handle it.” In reality, most commercial servo drives limit regeneration current to ≤150% of rated output for ≤50 ms—leaving a 30–50 ms torque deficit window where the pinion slips.

Compounding the issue, many rack suppliers specify only static bending stiffness (e.g., ≥28 kN/mm for 120 mm pitch steel racks), omitting dynamic torsional compliance. Yet under 180° directional shock, even a 0.012° twist in the pinion shaft translates to 0.047 mm pitch error—enough to break mesh continuity in ISO Class 5 precision systems.

The table reveals a consistent pattern: failure clusters not around component quality, but around system-level integration thresholds. Procurement decisions based solely on catalog torque curves—without cross-referencing inertia ratios, acceleration profiles, and mounting rigidity—carry measurable risk. For EPC contractors managing $2.4M+ motion control packages, this represents a non-trivial reliability liability.

How to Specify Resilient Systems: A Procurement Checklist

Resilience begins upstream—in specification language. Global Industrial Core recommends embedding these six non-negotiable clauses into technical bid documents for rack-and-pinion subsystems:

• Motor sizing must include full inertia calculation per IEC 60034-1 Annex D, with documented reflected load inertia at the pinion shaft—not just at the gearbox output.
• Rack mounting design shall achieve ≤0.020 mm deflection under 110% of maximum applied thrust force, verified via FEA report stamped by a certified structural engineer.
• Planetary gearbox supplier must provide ISO 14635-1 Class C torsional stiffness data at 100 N·m input torque, not just radial load capacity.
• All pinions shall be hardened to ≥58 HRC with micro-polished flank geometry (Ra ≤0.4 µm) to sustain >10⁷ cycles at 95% of peak torque.
• System-level validation requires dynamic reversal testing at ≥2.5 m/s² acceleration, with real-time strain gauge monitoring on rack supports and pinion bearings.
• Documentation package must include traceable calibration records for all measurement instruments used in acceptance testing (per ISO/IEC 17025).

These criteria shift procurement focus from component-level compliance to system-level fidelity. They also create enforceable audit trails—critical for ISO 9001:2015 Clause 8.4.2 and UL 508A Section 35 requirements governing industrial control panel integrations.

Real-World Validation: Case Study from a Tier-1 Automotive Assembly Line

At a Tier-1 automotive plant in Stuttgart, a robotic transfer gantry experienced repeat tooth skipping during high-speed pallet exchange (reversal at 3.1 m/s²). Initial fixes—tightening rack bolts, upgrading to case-hardened pinions, and increasing motor torque—failed. GIC engineering auditors traced the root cause to a 9.2:1 inertia ratio created by combining a 15 kW servo motor with a 12:1 planetary gearbox driving a 3.8-tonne moving structure fabricated from welded steel pipes wholesale.

The solution involved three coordinated interventions: (1) replacing the gearbox with a 7.5:1 ratio unit delivering identical output speed but reducing reflected inertia by 37%; (2) adding dual-axis inertial dampers at the rack support points to limit dynamic deflection to 0.015 mm; and (3) reprogramming the drive to activate regenerative braking at 180% current for 65 ms—within safe thermal limits. Uptime improved from 82% to 99.4% over 14 months, with zero recurrence.

Total investment: $24,500. ROI achieved in 4.3 months through avoided production loss alone—excluding secondary costs like recalibration labor, scrap parts, and safety incident reporting. This exemplifies how precision procurement directly enables operational resilience.

Next Steps for Engineering and Procurement Teams

For EPC contractors, facility managers, and procurement directors, mitigating inertia-related skipping demands cross-functional alignment: mechanical engineers must share dynamic load profiles early; controls engineers must validate drive capabilities against actual reversal waveforms; and sourcing teams must require certified inertia data—not just torque curves—from every gearbox and rack supplier.

Global Industrial Core offers three actionable resources to accelerate implementation: (1) a free Inertia Ratio Calculator Tool with pre-loaded data from 22 leading planetary gearbox manufacturers; (2) a Technical Specification Template aligned with ISO 14635, UL 508A, and CE Machinery Directive Annex IV; and (3) on-demand access to GIC-certified metrology labs for third-party dynamic validation of rack-and-pinion subsystems.

Precision motion isn’t compromised by poor parts—it’s undermined by incomplete specifications. The right intelligence, applied at the right stage, transforms a recurring failure mode into a benchmark for system integrity.

Contact Global Industrial Core today to request your customized Rack-and-Pinion System Resilience Assessment—including inertia analysis, mounting validation checklist, and OEM compatibility matrix.
