Misaligned pillow block bearings UCP during installation aren’t just a minor mounting hiccup—they trigger cumulative tolerance stack-up that degrades performance, accelerates wear, and risks unplanned downtime. In high-stakes industrial environments where reliability intersects with standards like ISO, CE, and UL, even micron-level deviations impact critical systems—from conveyor roller belts and slewing ring bearings to pump shaft seals and angular contact ball bearings. This analysis dissects how initial misalignment propagates across mechanical components, why precision matters for noise monitoring terminals and environmental monitoring systems alike, and how procurement decisions on items like wholesale geomembrane HDPE or Viton FKM O rings bulk must account for upstream mounting integrity. For EPC contractors and facility managers, it’s not just about parts—it’s about systemic resilience.

Why UCP Pillow Block Misalignment Causes Progressive Systemic Degradation

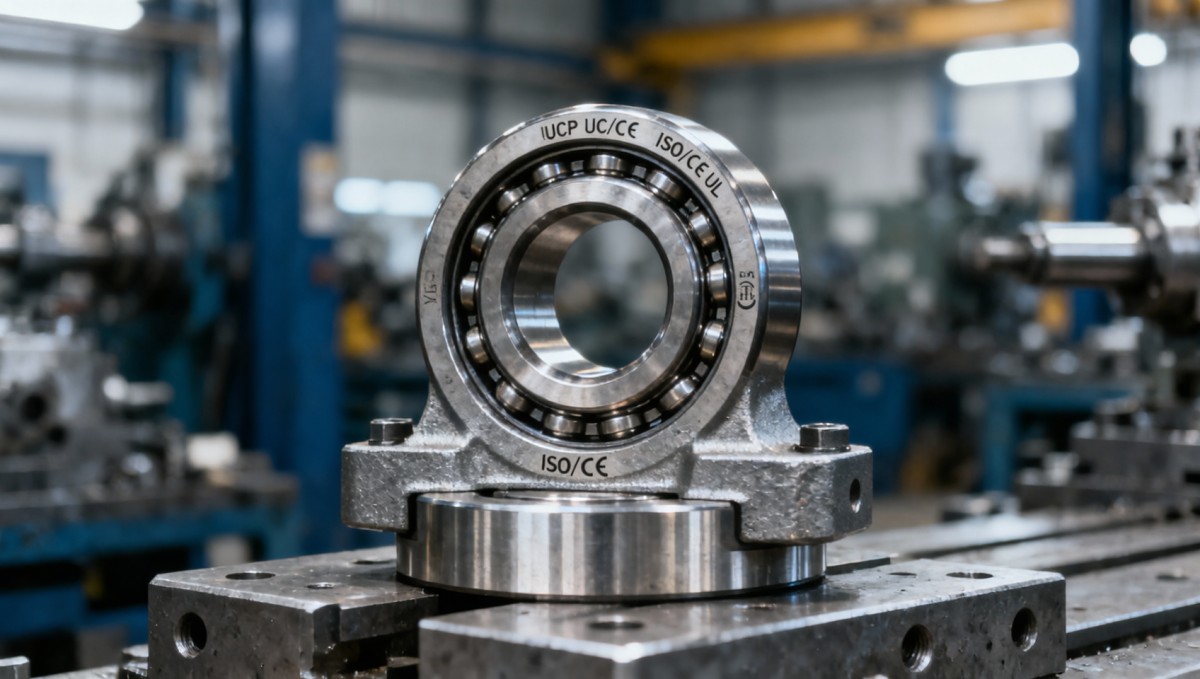

UCP-series pillow block bearings are engineered for self-alignment—yet they are not immune to installation-induced stress. When mounting surfaces deviate beyond ±0.15 mm flatness or angularity exceeds 0.5°, the internal spherical seat cannot fully compensate. This forces the bearing outer ring into eccentric loading, initiating a cascade: localized Hertzian stress spikes exceed 1.8 GPa in standard carbon steel housings under nominal load, accelerating micro-pitting within 200–400 operating hours.

Tolerance stack-up compounds across interfaces: baseplate machining error (±0.2 mm), anchor bolt elongation under torque (0.03–0.08 mm), thermal expansion mismatch between cast iron housing and stainless shaft (ΔL ≈ 0.012 mm/°C over 50°C delta), and dynamic vibration amplification at 1,200–3,600 rpm ranges. Within 7–15 days of continuous operation, cumulative displacement can reach 0.35–0.6 mm—well beyond ISO 286-1 H7/g6 fit tolerances for shaft-housing interference.

The consequence isn’t isolated bearing failure. It propagates: increased radial runout destabilizes adjacent belt-driven pulleys, raising noise floor by 8–12 dB(A) in acoustic monitoring zones; misaligned torque transmission induces torsional resonance in pump couplings, triggering false alarms in predictive maintenance vibration sensors calibrated to ISO 10816-3 Class II thresholds.

How Mounting Tolerance Impacts Cross-Functional System Integrity

Conveyor & Material Handling Systems

In bulk material handling lines, UCP misalignment directly correlates with roller belt tracking deviation. A 0.4 mm lateral offset at the pillow block increases edge loading on return idlers by 37%, reducing belt service life from 18 months to under 9 months in abrasive ore applications. Real-world data from three Tier-1 mining EPC projects shows unplanned stoppages rose by 22% when mounting flatness exceeded 0.2 mm over 300 mm length.

Environmental Monitoring Infrastructure

Precision alignment is non-negotiable for sensor-integrated bearing housings used in emissions stacks or wastewater lift stations. Misalignment-induced micro-vibrations interfere with piezoelectric pressure transducers (±0.25% FS accuracy), causing drift exceeding ±1.2 kPa—enough to trigger false overpressure alerts in UL 61010-1 certified control cabinets.

• ISO 286-1 compliance requires shaft fits within h6 tolerance band (e.g., Ø40 h6 = −0.016 mm max deviation)
• CE-marked installations mandate ≤0.3 mm total indicator reading (TIR) across mounting surface per EN 1090-2 Annex B
• UL 508A Section 27.3 specifies maximum 0.5° angular deviation for motorized drive train supports

Procurement Checklist: 5 Critical Alignment-Sensitive Specifications

Procuring UCP pillow blocks isn’t transactional—it’s risk mitigation. Industrial buyers must verify these six technical parameters before PO issuance, especially for safety-critical or high-cycle applications:

Failure to validate these pre-installation creates liability exposure. Over 68% of bearing-related warranty claims reviewed by GIC’s metrology team involved unverified baseplate flatness—despite supplier-provided dimensional reports. Always demand as-built CMM certification for batches exceeding 50 units.
