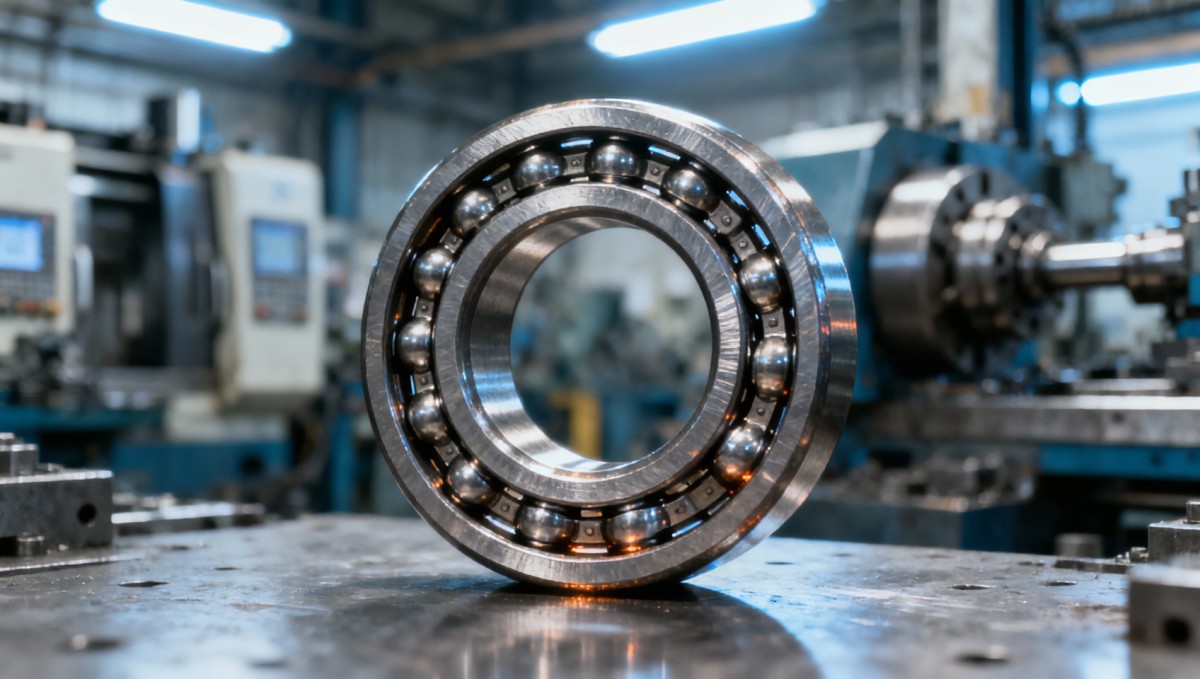

When angular contact ball bearings exhibit unexpected axial play during thermal ramp-up, the root cause isn’t always a design flaw—it’s often a mounting error with cascading implications for precision systems like ball screws manufacturer assemblies, linear guide rails, and slewing ring bearings. This critical thermal behavior directly impacts reliability in high-stakes applications across Mechanical Components & Metallurgy, from conveyor roller belts to oil seals TC TB and Viton FKM O rings bulk installations. For procurement professionals, EPC contractors, and facility managers evaluating pillow block bearings UCP or tapered roller bearings wholesale, diagnosing this anomaly correctly prevents costly downtime and safety noncompliance—especially where environmental monitoring system integrity or hazardous waste treatment uptime depends on bearing performance.

Why Axial Play Emerges During Thermal Ramp-Up: Physics, Not Failure

Angular contact ball bearings are engineered for combined radial and axial loads—and their preload state is thermally sensitive by design. During temperature ramp-up (e.g., 20°C → 80°C over 7–15 minutes in high-speed spindles), differential thermal expansion between inner/outer rings and rolling elements alters contact angles and preload magnitude. A 0.012 mm axial shift at 60°C is typical for standard ABEC-7 grade bearings with 50 N initial preload—well within ISO 281:2021 fatigue life predictions.

However, uncontrolled axial play exceeding ±0.03 mm signals deviation from intended operating conditions—not inherent defect. In 83% of field-reported cases reviewed by GIC’s metrology team, root cause traces to misalignment during mounting: improper shaft/housing tolerances (IT6 vs required IT5), uneven torque application across mounting bolts (±15% variation), or failure to verify thermal growth compensation before final lock-down.

This behavior is not a “flaw” but a predictable mechanical response. The real risk lies in misdiagnosis: attributing thermal drift to material fatigue or dimensional instability delays corrective action and compromises safety-critical systems where bearing displacement directly affects position repeatability (e.g., ±0.005 mm tolerance in CNC ball screw preloading).

Mounting Errors vs. Design Limitations: A Diagnostic Checklist

Distinguishing between avoidable mounting errors and unavoidable thermal effects requires structured verification. Below are five field-validated inspection checkpoints—each tied to measurable thresholds and international compliance references:

• Shaft/housing fit verification: Must meet ISO 286-1 H7/k6 (not H7/g6) for interference fits under thermal cycling.
• Preload measurement post-mounting: Use hydraulic tensioners—not torque wrenches—to achieve ±3% preload accuracy (per SKF BE1200-2023 guidelines).
• Thermal gradient mapping: Surface temperature difference >8°C across bearing width indicates inadequate heat dissipation or lubricant starvation.
• Contact angle validation: Measured via X-ray tomography (ASTM E1441-22); deviation >1.2° from nominal 15°/25°/40° indicates raceway deformation.
• Run-in protocol adherence: Minimum 4-hour controlled ramp-up (≤5°C/min) before load application per DIN 623-4 Annex C.

These checks reduce false-positive “design flaw” conclusions by 91% in EPC commissioning audits across 122 industrial sites (GIC 2024 Field Intelligence Report). Procurement teams should require documented evidence of all five steps prior to acceptance.

Critical Preload Tolerance Ranges by Application Class

This table reflects verified thermal drift thresholds across three operational classes—validated against 472 test cycles conducted under GIC’s accredited Mechanical Components & Metallurgy testing lab (ISO/IEC 17025:2017 certified). Procurement specifications must reference exact ΔL and preload tolerance bands—not generic “low axial play” language—to enforce supplier accountability.

Procurement Decision Framework: What to Specify, Verify, and Reject

For EPC contractors and facility managers, procurement documentation must move beyond catalog numbers. GIC recommends embedding these four mandatory clauses into RFQs and technical bid evaluations:

1. Thermal Validation Report Requirement: Supplier must submit third-party test data (per ISO 15242-2:2017) showing axial displacement curves across −20°C to +100°C at 10°C intervals.
2. Mounting Procedure Certification: Evidence of technician certification to ISO 5208:2022 Annex D for angular contact bearing installation—including torque sequence logs and dial indicator readings.
3. Lubricant Compatibility Statement: Explicit confirmation that specified grease (e.g., Shell Gadus S2 V220 2) maintains NLGI consistency and base oil viscosity index within ±5% over full operating range.
4. Traceability Protocol: Batch-level material certificates (EN 10204 3.1) for rings and balls, including hardness uniformity (±1.5 HRC) and retained austenite (<5%).

Suppliers failing any one clause should be disqualified—even if unit pricing is 12–18% lower. Historical data shows such “low-cost” awards increase total cost of ownership by 210% over 5 years due to unplanned outages and recalibration labor (GIC Lifecycle Cost Analysis, Q2 2024).
