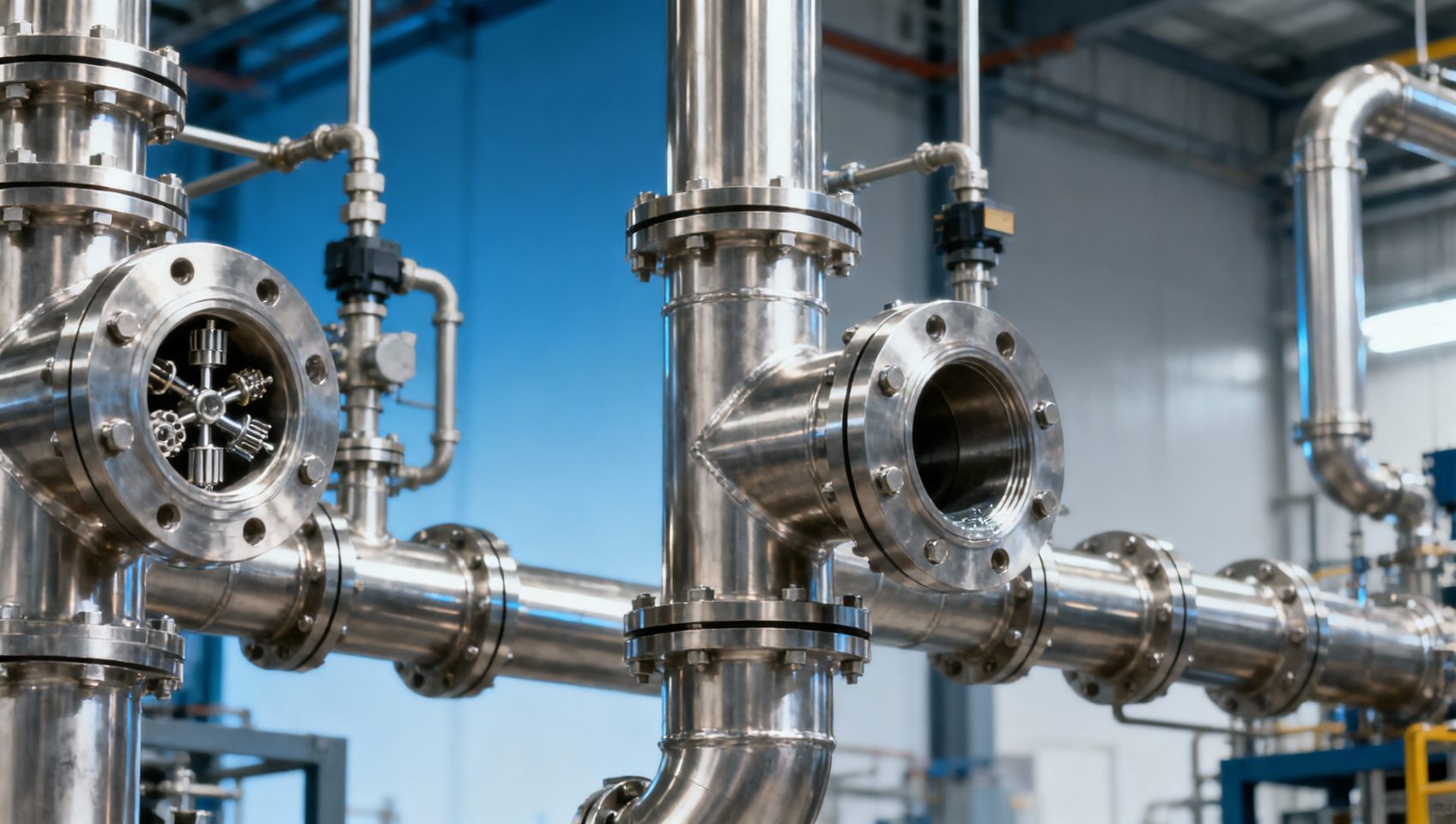

For buyers evaluating static mixers wholesale, pressure drop is often the hidden factor that shapes energy use, mixing efficiency, and long-term operating cost. Across industrial systems handling water treatment chemicals, VOCs treatment equipment, or process fluids, selecting the right mixer design requires balancing performance, flow conditions, and maintenance demands. This guide helps researchers, operators, procurement teams, and decision-makers compare options with greater technical and commercial clarity.

Why pressure drop changes the economics of static mixers wholesale

In static mixers wholesale purchasing, many teams first compare unit price, material grade, and lead time. However, pressure drop often has a larger lifecycle impact than the initial purchase cost. A mixer with a 0.1–0.3 bar higher differential pressure can increase pump energy demand across 24/7 operations, especially in chemical dosing lines, water treatment skids, and gas conditioning systems.

The reason pressure drop varies so widely is simple: internal geometry drives turbulence, shear, and contact area. More aggressive mixing elements usually improve blending in shorter pipe runs, but they also resist flow more strongly. In many industrial lines, this trade-off affects three linked targets at once: mixing quality, allowable pump head, and maintenance interval.

For operators, a poorly matched mixer may cause unstable dosing, incomplete additive dispersion, or pressure alarms during peak throughput. For procurement teams, the risk is buying a low-cost mixer that later requires a larger pump, more frequent cleaning, or a line redesign. For decision-makers, the issue is not only technical performance but the total cost over 3–5 years of service.

Pressure drop must therefore be evaluated under real operating conditions: flow rate, viscosity, density, solids content, line diameter, and required mixing index. A mixer that performs well at 2 m/s in clean water may behave very differently at 0.5 m/s with polymer solution or in a VOCs treatment system with variable gas composition.

Key variables that influence pressure drop

When comparing wholesale options, buyers should request more than a generic datasheet. At minimum, suppliers should clarify the expected pressure loss across a defined range of velocities, such as 0.3–3.0 m/s for liquids or 5–25 m/s for gases. This creates a practical basis for comparing designs that may look similar externally but perform very differently inside.

• Element geometry: helical, corrugated, tabbed, or grid-style elements each create different resistance profiles.
• Element count: more elements often mean better homogeneity, but also a higher pressure penalty.
• Fluid properties: viscosity above 100 cP or suspended solids above 1% can change both mixing and fouling behavior.
• Pipe size and Reynolds number: laminar and turbulent regimes require different design expectations.

The table below shows how common wholesale mixer configurations tend to differ in pressure behavior and application fit. These are typical industrial ranges used for early-stage evaluation, not fixed performance guarantees.

The main takeaway is that “better mixing” and “lower pressure drop” rarely peak at the same point. Wholesale buyers need a balanced target, often defined by acceptable differential pressure, required homogeneity, and available pump margin rather than by any single headline specification.

How to compare mixer designs by application, flow regime, and line constraints

Static mixers used in industry are not interchangeable across all duties. A design suited to caustic dilution in a 2-inch pipe may not work well for activated carbon slurry transfer or for gas-phase mixing in VOCs treatment equipment. The best wholesale comparison starts with the process objective: dilution, dispersion, heat transfer support, pH adjustment, or gas-liquid contact improvement.

Flow regime matters just as much as chemistry. In turbulent liquid flow, many mixers can achieve strong blending in 5–10 pipe diameters. In laminar conditions, the mixer may need more elements, more precise geometry, or a longer installed section. If this is overlooked, buyers may select a low-pressure design that never reaches the required mixing performance under actual plant conditions.

Line constraints also shape the decision. Some facilities can accept an extra 0.3 bar because pumps already operate at 60–70% of available head. Others have almost no spare pressure margin, especially in retrofit projects. In those cases, a lower-resistance mixer or a longer downstream blending section may be the safer commercial choice.

Practical screening criteria for wholesale evaluation

A useful comparison should examine at least four dimensions together: process fluid, target mixing result, allowable pressure loss, and serviceability. This avoids the common mistake of comparing only element shape or only price per unit.

1. Define the flow envelope, including minimum, normal, and maximum throughput, such as 30%, 70%, and 100% load conditions.
2. Specify the fluid window, including viscosity range, solids presence, temperature, and corrosion risk.
3. Set a pressure drop ceiling, for example below 0.15 bar for utility systems or below 0.5 bar for dedicated chemical loops.
4. Confirm the required mixing outcome, such as concentration uniformity, reaction support, or additive distribution.

Application-oriented comparison matrix

The next table can be used by engineers and buyers to align mixer choice with process realities rather than catalog descriptions alone.

This matrix shows that the best static mixers wholesale option depends less on generic “efficiency” claims and more on line-specific constraints. The same plant may even require two different mixer styles across separate utilities and process areas.

Procurement factors beyond price: materials, maintenance, lead time, and risk

Wholesale sourcing decisions should combine hydraulic performance with supply-chain practicality. Material grade is a major example. Stainless steel 304 may be acceptable in neutral water applications, while 316 or specialty alloys may be preferred in chloride-bearing streams, acidic dosing, or higher-temperature service above 60°C. Selecting the wrong material can turn a low-price purchase into a replacement event within 12–18 months.

Maintenance access is another factor often underestimated in early purchasing. A static mixer has no moving parts, but it is not maintenance-free in all services. Scaling, polymer build-up, or solids accumulation can increase pressure drop over time. In a clean utility line, inspection every 6–12 months may be enough. In fouling service, monthly checks or CIP planning may be necessary.

Lead time also varies by design and fabrication route. Standard in-line mixers in common diameters may ship in 7–15 days. Custom lengths, special alloys, sanitary finishes, or large-bore units can extend delivery to 3–6 weeks or more. Procurement teams should map this against project milestones, especially where commissioning windows are tight.

Commercial risk increases when quotations omit test assumptions. If one supplier states pressure drop at water-like viscosity and another quotes at actual process conditions, the price comparison is not meaningful. Procurement should request a common basis for flow, temperature, density, viscosity, and pipe size before making a final award recommendation.

Risk checklist for industrial buyers

• Confirm whether pressure drop values are quoted at design flow only or across a 3-point operating range.
• Check if the mixer is removable, welded, flanged, threaded, or spool-mounted for maintenance access.
• Verify material compatibility with chemicals, temperature cycles, and cleaning media.
• Review whether spare seals, gaskets, or replacement elements are needed for the selected configuration.
• Ask for dimensional tolerances if the mixer must fit into existing skids or modular EPC packages.

Commercial comparison points that reduce sourcing errors

Teams that formalize these checks usually reduce rework risk, especially in global projects where multiple contractors, operators, and regional vendors are involved.

For industrial buyers, the best value often comes from the supplier that can provide clear hydraulic assumptions, compatible materials, and realistic delivery promises, not just the lowest quotation line.

Implementation, commissioning, and common mistakes after purchase

Even a well-selected mixer can disappoint if installation and commissioning are rushed. Upstream and downstream conditions matter. Disturbed flow from elbows, valves, or reducers directly before the mixer can alter pressure readings and mixing behavior. Many installations benefit from straight-run consideration, especially in critical dosing systems where concentration consistency is monitored closely.

Commissioning should verify more than leak-tightness. Operators should record baseline differential pressure at normal flow, observe mixing quality at low and high load, and note any vibration or noise in gas systems. This baseline becomes important for maintenance because a later increase in pressure drop of 15–25% may indicate fouling, blockage, or an upstream process change.

Another common mistake is oversizing for future expansion without checking low-flow performance. If current operation is only 40% of the long-term design case, the mixer may not generate enough internal motion to blend effectively today. In such cases, staged design, dual-range operation, or a different element profile may be more practical than one oversized unit.

Documentation should be standardized at handover. Maintenance teams need drawings, material details, orientation instructions, cleaning recommendations, and operating limits. In facilities with multiple similar skids, this reduces confusion during shutdowns and helps standardize spare planning over 1–2 annual maintenance cycles.

Four common mistakes in static mixer projects

1. Buying by nominal pipe size alone without matching flow regime and fluid viscosity.
2. Accepting a pressure drop value with no stated basis for temperature or operating range.
3. Ignoring fouling behavior in polymer, slurry, or scaling-prone services.
4. Skipping baseline commissioning data, which makes later troubleshooting slower and less precise.

FAQ for researchers, operators, and procurement teams

The following questions reflect common search and buying intent in industrial sourcing projects.

How do I choose between low pressure drop and high mixing intensity?

Start by defining the maximum acceptable pressure loss in the line and the minimum required mixing result. If spare pump head is limited to 0.2 bar, aggressive multi-element designs may not be feasible. If blend quality is critical for reaction control or precise dosing, accepting a somewhat higher drop may produce better overall process stability.

Are static mixers suitable for fouling or solids-bearing systems?

They can be, but only with the right geometry and maintenance plan. Open-area designs are generally safer for streams with suspended solids or viscous components. Buyers should also plan inspection frequency, flushing points, or CIP procedures rather than assuming all static mixers behave the same in dirty service.

What delivery timeline is realistic for wholesale orders?

For standard industrial sizes and common materials, 1–3 weeks is often realistic. Custom fabrication, larger diameters, or special materials may require 3–6 weeks. International projects should also add time for documentation review, export packing, and site acceptance preparation.

Which documents should procurement request before issuing a PO?

At minimum, request a dimensional drawing, material specification, pressure drop basis, recommended operating range, installation orientation if relevant, and a defined scope of supply. For EPC or regulated projects, documentation alignment is often as important as the hardware itself.

Static mixers wholesale options differ far more in pressure drop behavior than many buyers expect, and that difference directly influences energy use, line stability, maintenance planning, and total project cost. The most reliable selection approach is to compare mixer geometry, operating range, material compatibility, and commercial terms on a common technical basis. Whether your project involves water treatment chemicals, VOCs treatment equipment, or broader process fluid control, a well-matched mixer can reduce risk across design, procurement, and operations. To evaluate the right configuration for your application, contact GIC for tailored sourcing insight, technical comparison support, and solution guidance aligned with industrial performance requirements.
