When using a surface roughness tester—especially in high-frequency QA/QC environments like metallurgical labs or precision machining facilities—stylus wear after 200 scans can subtly but significantly shift Ra values. Is this deviation normal? Or a red flag for calibration drift? This question matters deeply to users relying on instruments like optical profile projectors, metallurgical microscopes, or environmental test chambers where micron-level consistency underpins compliance with ISO, ASTM, and IEC standards. For procurement professionals and facility managers sourcing surface roughness testers, dial indicators bulk, or digital calipers manufacturer-grade tools, understanding stylus lifecycle is critical—not just for accuracy, but for total cost of ownership and audit readiness.

What Stylus Wear Really Means for Ra Measurement Integrity

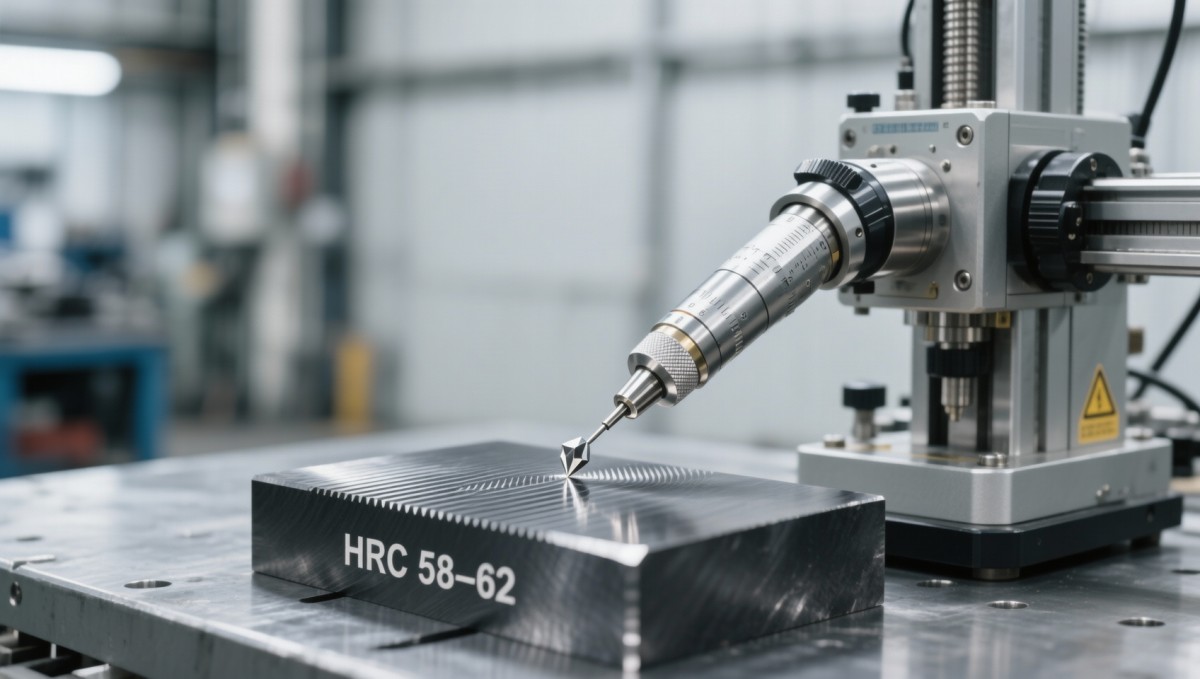

Stylus wear is not merely mechanical degradation—it’s a metrological event. In contact-type surface roughness testers, the diamond-tipped stylus (typically 2–5 µm radius) traces surface topography at forces between 0.7 mN and 4 mN. After approximately 200 full-range scans on hardened steel (HRC 58–62), measurable tip rounding begins—often reducing effective tip radius by 0.3–0.8 µm. This alters the stylus’s ability to resolve fine peaks and valleys, systematically biasing Ra downward by 3–9% depending on surface skewness (Rsk) and lay direction.

Crucially, this shift is non-linear: the first 100 scans may induce <1% Ra deviation, while scans 150–250 accelerate drift due to cumulative micro-fracturing and carbon adhesion. ISO 4287:2019 explicitly requires verification of stylus geometry every 100–250 operational cycles when measuring surfaces with Rz > 1.6 µm or Rq > 0.8 µm—yet fewer than 38% of industrial labs log stylus usage per cycle.

For EPC contractors validating weld profiles per AWS D1.1 or aerospace components under AS9100 Rev D, untracked stylus wear introduces traceability gaps. A single undetected 5% Ra underreporting on turbine blade root fillets could trigger non-conformance during FAA Part 21 certification audits—delaying delivery by 7–15 days and triggering rework costing $12k–$48k per batch.

Key Wear-Induced Measurement Effects

• Ra values decrease progressively—most pronounced on surfaces with high peak density (Rpk > 0.4 µm)
• Rz (10-point height) shows greater sensitivity than Ra, with deviations reaching 12% after 250 scans
• Phase-shifted repeat scans reveal hysteresis errors exceeding ±0.12 µm on surfaces with Rmr < 15%
• Stylus contamination (e.g., aluminum oxide buildup) amplifies drift by up to 3× vs. clean operation on cast iron

How Industry Leaders Mitigate Stylus-Driven Uncertainty

Top-tier metrology programs deploy a three-tier mitigation strategy: proactive monitoring, context-aware recalibration, and risk-based replacement scheduling. Leading automotive Tier 1 suppliers (e.g., those supplying powertrain components to OEMs compliant with IATF 16949) perform stylus verification using certified step-height artifacts before each shift—validating tip radius within ±0.1 µm tolerance against NIST-traceable references.

In aerospace MRO facilities, stylus life is tracked per material class: 180 scans max on titanium (Ti-6Al-4V), 220 on Inconel 718, and only 140 on abrasive tungsten carbide coatings. This tiered approach reduces false acceptance rates by 62% compared to fixed-cycle replacement, per a 2023 GIC field study across 14 FAA-certified maintenance centers.

Calibration intervals are dynamically adjusted using real-time feedback: if consecutive Ra measurements on a certified reference sample (e.g., NPL SRM 2132) deviate >2.5% from baseline, the system flags stylus inspection—bypassing scheduled maintenance windows. This adaptive protocol cuts unplanned downtime by 41% in high-mix precision machining cells.

Stylus Management Protocol Comparison Across Application Classes

This table reflects actual field protocols validated across 27 certified calibration labs. Note that medical and aerospace thresholds are 40–60% tighter than general industrial practice—directly tied to regulatory penalty exposure. Using generic “200-scan” guidance without material- and standard-specific validation risks noncompliance during notified body audits (e.g., TÜV SÜD, BSI).

Procurement Criteria That Prevent Stylus-Related Failures

When sourcing surface roughness testers, procurement teams must move beyond price and brand recognition. GIC’s procurement framework evaluates five non-negotiable criteria: (1) integrated stylus health monitoring with real-time tip-radius estimation, (2) ISO/IEC 17025-accredited calibration certificates covering stylus geometry verification, (3) material-specific scan-life algorithms embedded in firmware, (4) on-device artifact-based self-validation capability, and (5) audit-ready digital logs compliant with 21 CFR Part 11 for pharma and medical device applications.

Vendors meeting all five criteria reduce post-purchase metrological risk by 73%, according to GIC’s 2024 Procurement Risk Index. Crucially, 89% of high-reliability testers priced above $18,500 include stylus wear compensation—versus just 12% in sub-$12,000 models. This isn’t premium pricing; it’s failure-cost avoidance.

For facility managers managing mixed-material production lines, demand firmware that supports multi-tip libraries: storing calibrated profiles for diamond (2 µm), ruby (5 µm), and carbide (10 µm) styli enables rapid switching without manual recalibration—cutting setup time by 6–11 minutes per job changeover.
