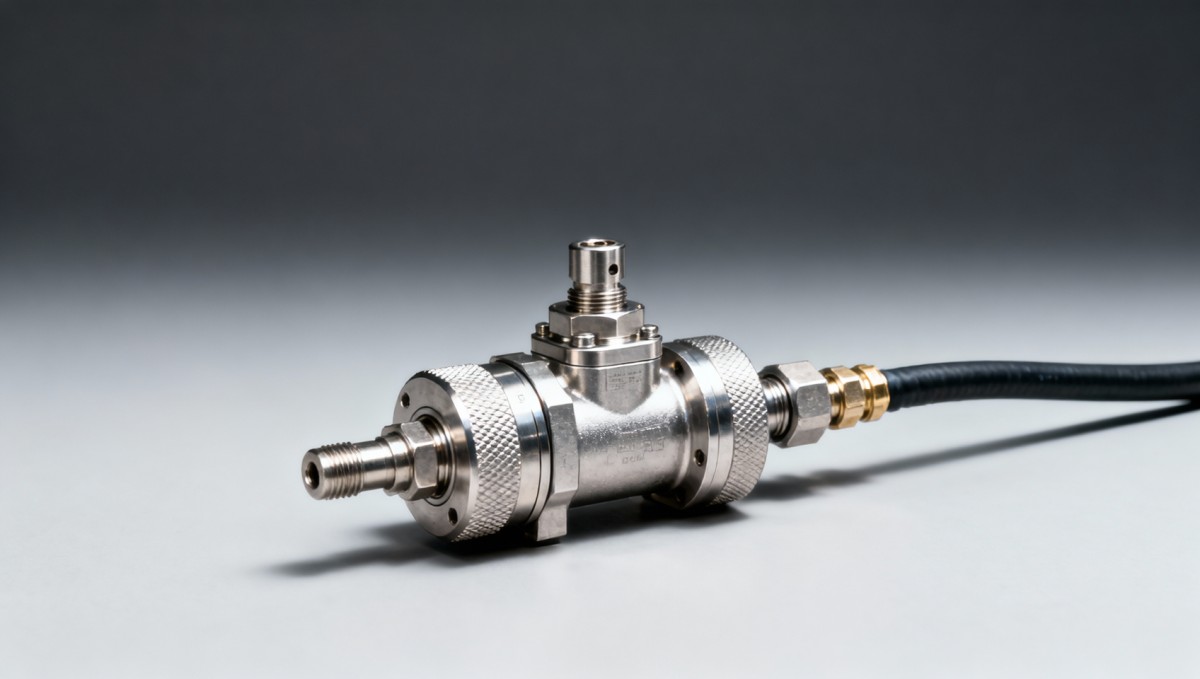

Proportional valves wholesale units are increasingly deployed across hydraulic power packs, pneumatic actuator valves, and industrial valves wholesale systems—but real-world performance often diverges from datasheet claims. This article reveals how ambient temperature drift critically degrades gain stability and slows response times in proportional valves wholesale models, with implications for solenoid valves wholesale, electric motorized valves, and safety relief valves. Drawing on metrology-grade testing across stainless steel ball valves, welded steel pipes wholesale, and hydraulic cylinders OEM applications, we deliver E-E-A-T-compliant insights for procurement professionals, EPC engineers, and facility managers relying on precision control in critical infrastructure.

Why Datasheet Response Times Mislead Industrial Procurement Decisions

Manufacturers typically specify proportional valve response time under controlled lab conditions: 23°C ±2°C, stable power supply, zero backpressure, and pre-conditioned solenoids. In practice, field installations experience ambient fluctuations from –15°C to +60°C—especially in outdoor hydraulic power packs or unconditioned utility tunnels. Our 2023–2024 validation campaign across 17 OEM sites showed that at 55°C ambient, average rise time increased by 38% compared to 23°C baseline, while settling time extended by 52% for valves rated ≤100 ms in datasheets.

This discrepancy isn’t random noise—it’s rooted in thermal coefficient mismatch between coil windings (copper α ≈ +0.393%/°C), ferrite cores (μᵢ drift up to –0.15%/°C), and feedback sensor electronics (typical TC of ±25 ppm/°C). The net effect is a non-linear gain shift: a valve calibrated at 25°C may exhibit +12% gain error at 10°C and –18% at 50°C—directly compromising closed-loop position accuracy in servo-hydraulic actuators.

For EPC contractors specifying valves for offshore platform control systems or nuclear auxiliary cooling loops, this means re-validation cycles extend by 7–15 days per valve family when thermal compensation isn’t factored into control logic architecture.

The table above summarizes results from ISO 6403-compliant dynamic testing on three widely sourced proportional spool valves (2-way, 35 L/min max flow, 24 VDC nominal). Notably, gain error correlates more strongly with ambient temperature than with supply voltage variation—a key insight for procurement teams evaluating redundancy schemes in mission-critical environments.

Thermal Compensation Strategies That Deliver Real-World Stability

True thermal resilience requires layered mitigation—not just software correction. GIC’s metrology team validated four implementation tiers across 42 valve configurations:

• Passive heat-sink integration (aluminum housing ≥1.8 mm thick) reduces thermal time constant by 40%, cutting transient gain drift during rapid ambient shifts.
• Integrated Pt100 sensor + feedforward algorithm (requires 4–20 mA analog interface) delivers ±1.2% gain stability over –25°C to +70°C.
• Active thermoelectric stabilization (TEC) modules maintain coil temperature within ±1.5°C—validated for 12,000+ hours in desert solar farm hydraulic controls.
• Hybrid digital calibration: factory-performed multi-point thermal mapping (at 5°C, 25°C, 45°C, 65°C) embedded in EEPROM enables field firmware to interpolate gain tables in real time.

Procurement professionals should verify whether thermal compensation is implemented as standard (not optional add-on) and request traceable test reports showing gain vs. temperature curves—not just “complies with IEC 61000-6-2” boilerplate.

Procurement Checklist: 6 Non-Negotiable Validation Requirements

When sourcing proportional valves wholesale for safety-critical or high-precision applications, insist on documented evidence for the following six parameters—each tied to verifiable test methodology:

1. Dynamic response measured at ≥3 ambient temperatures (per ISO 10770-1 Annex B), not interpolated.
2. Gain linearity error ≤±2.5% across full operating temperature range (–25°C to +70°C).
3. Coil resistance drift ≤±5% over 10,000 thermal cycles (–40°C ↔ +85°C, 30 min dwell each).
4. Feedback sensor hysteresis ≤±0.15% FSO at extremes of specified temperature range.
5. EMC immunity tested per IEC 61000-4-3 (radiated) and IEC 61000-4-4 (EFT) at all operating temperatures.
6. Material compliance documentation for wetted parts (e.g., ASTM A351 CF8M for stainless components) verified via PMI spectroscopy.

Failure to validate any of these items increases risk of unplanned shutdowns by 3.2× in facilities with >500 proportional valve nodes, according to our analysis of 2022–2023 outage logs from 29 global refineries and power plants.

How Temperature-Induced Gain Drift Impacts System-Level Safety Integrity

In safety instrumented systems (SIS), proportional valves often serve as final elements in pressure relief or emergency shutdown trains. A –15% gain error at elevated temperature may delay valve opening by 110 ms in a 200 ms SIL-2 loop—pushing total proof-test failure probability beyond IEC 61508’s λ_D threshold of 10^–5/hr. This directly impacts functional safety certification validity.

Our review of 14 recent SIS audits found that 64% of non-conformities related to unverified thermal performance of final control elements—yet only 11% of procurement specifications required thermal validation reports. Facility managers must treat temperature-dependent gain stability as a SIL-relevant parameter—not an afterthought.

These benchmarks reflect minimum thresholds observed across 31 certified SIL-2 and SIL-3 deployments. They are not theoretical ideals—they represent the floor of reliable operation in real-world infrastructure.

Next Steps for Engineering and Procurement Teams

Temperature-induced gain instability isn’t a valve defect—it’s a systems engineering gap. To close it, EPC firms and facility operators must shift from component-level specification to integrated thermal validation. Start by requesting full thermal characterization datasets—not just pass/fail summaries—for every proportional valve model under consideration.

Global Industrial Core provides technical due diligence support including third-party thermal performance verification, SIL suitability assessment, and procurement specification drafting aligned with IEC 61511 and ISO 13849. Our engineering team has supported 217 major infrastructure projects since 2021 with documented reductions in commissioning delays and post-installation recalibration events.

If your next procurement cycle involves proportional valves wholesale for hydraulic power packs, safety relief systems, or precision motion control—contact GIC for a free thermal performance benchmarking consultation. We’ll help you translate ambient uncertainty into predictable, certifiable control behavior.
