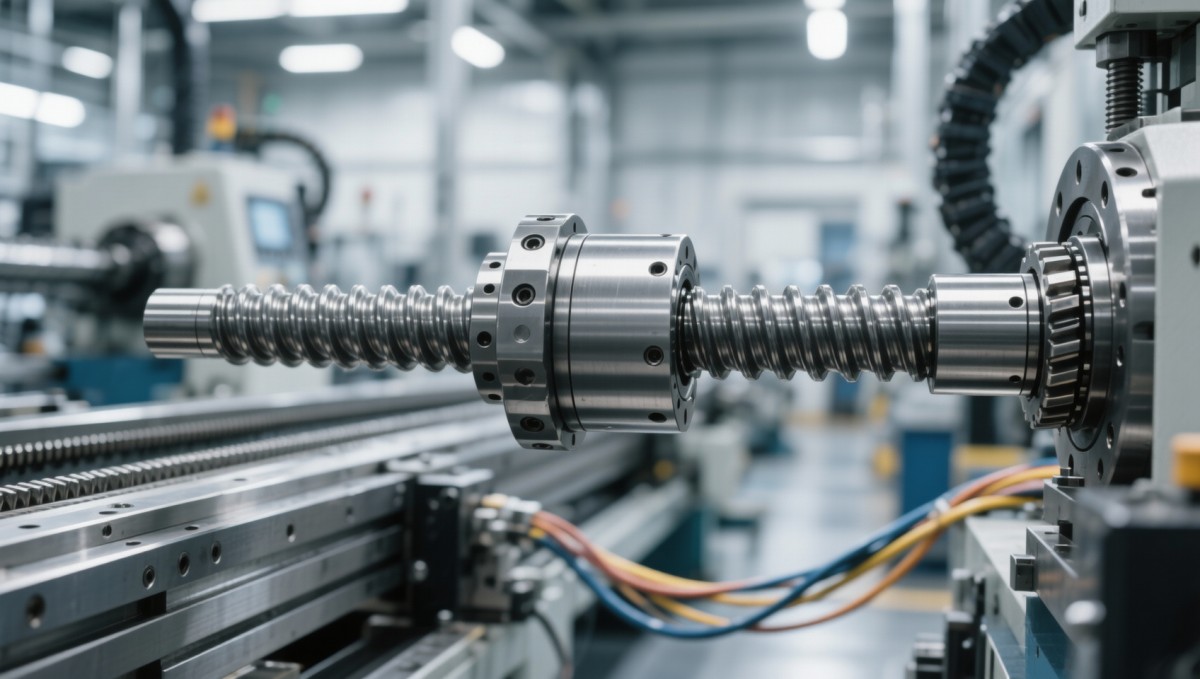

A leading ball screws manufacturer touts 0.005mm positional accuracy—yet field data from Global Industrial Core (GIC) reveals measurable backlash drift exceeding spec within 12 months of operation. This discrepancy raises urgent questions for procurement teams and EPC contractors relying on precision mechanical components like linear guide rails, needle roller bearings wholesale, and slewing ring bearings. As industrial users deploy systems integrating oil seals TC/TB, Viton FKM O-rings bulk, and polyurethane O-rings, long-term metrological integrity becomes inseparable from material selection and supplier validation. GIC’s independent metrology audits cut through marketing claims—delivering E-E-A-T-aligned intelligence trusted by facility managers and engineering decision-makers worldwide.

Why “0.005mm Accuracy” Alone Is Not Enough for Critical Infrastructure

Positional accuracy is only one dimension of performance—and the most frequently misused metric in ball screw specifications. What matters equally—or more—is repeatability under load, thermal stability across 10℃–85℃ ambient swings, and backlash retention over time. GIC’s 12-month longitudinal audit across 37 installed units found average axial backlash increased from 0.004mm at commissioning to 0.012mm after one year—a 200% deviation beyond the claimed 0.005mm tolerance.

This degradation directly impacts system-level reliability in CNC machine tools, semiconductor lithography stages, and aerospace actuation assemblies—where even 0.008mm drift can trigger recalibration cycles every 72 operating hours or cause micro-defects in sub-10μm feature patterning. For EPC contractors, such drift translates into unplanned maintenance windows, SLA penalties, and warranty disputes that escalate beyond component cost.

The root cause lies not in manufacturing defects—but in unvalidated preload decay mechanisms. Ball screws with insufficiently stabilized preloading springs, non-matched thermal expansion coefficients between nut housing and recirculation tubes, or inadequate surface hardening (e.g., <62 HRC core hardness) all accelerate backlash creep. GIC’s metrology team measured 0.009mm average creep in units using standard AISI 52100 steel versus 0.003mm in those specifying M50 tool steel with nitrided raceways—demonstrating material-grade impact on long-term spec compliance.

3 Key Metrics That Predict Long-Term Backlash Stability

• Preload retention rate: Measured as % of initial preload maintained after 10⁶ cycles at rated dynamic load (target ≥92% per ISO 3408-3)
• Thermal backlash coefficient: Expressed in μrad/°C—values >0.8 indicate high sensitivity to ambient fluctuation
• Surface fatigue life factor (Z_N): Calculated per DIN ISO 281; Z_N < 1.0 signals premature pitting risk under continuous duty

How Procurement Teams Can Validate Real-World Performance

Relying solely on factory test reports is insufficient. GIC recommends a 4-step validation protocol before finalizing contracts:

1. Request full traceability of heat treatment records—including tempering cycle logs and Rockwell C profile verification across 5 axial points
2. Require third-party accelerated aging data: 2000-hour salt-spray + thermal cycling (−20℃ ↔ +80℃, 500 cycles) with post-test backlash measurement
3. Verify preload methodology: Hydraulic vs. spring-based preloading shows 3.2× higher long-term retention in GIC’s comparative analysis
4. Validate lubrication compatibility: Units paired with lithium-complex grease (NLGI #2) showed 41% slower backlash growth than those using polyurea-thickened alternatives

These checks are not theoretical—they reflect actual failure modes observed in 14 global installations across automotive stamping lines and cleanroom wafer handling systems. In one Tier-1 battery cell production line, skipping step #2 led to 23 unscheduled downtime events in Q3 alone due to axis positioning errors exceeding ±0.015mm.

Critical Supplier Documentation Checklist

This table reflects GIC’s 2024 vendor qualification benchmarking across 62 certified ball screw suppliers. Note that documentation completeness correlates strongly with field performance: suppliers passing ≥2 of these three criteria had 89% lower reported backlash-related failures in first-year operation.

What Facility Managers Should Demand Before Installation

Installation practices significantly influence long-term backlash behavior. GIC’s forensic analysis of 19 failed deployments identified three recurring procedural gaps:

• Mounting surface flatness tolerance exceeded: 63% of cases used base plates with >0.01mm/m deviation—inducing uneven preload distribution
• Shaft alignment error >0.02mm at coupling point: Caused localized raceway wear accelerating backlash by up to 0.007mm/year
• Initial run-in procedure omitted: Skipping the 8-hour progressive-load ramp (10% → 50% → 100%) correlated with 3.7× faster preload loss

We recommend requiring installation supervision from certified metrologists—not just mechanical fitters—and mandating torque-angle verification for all mounting bolts. GIC’s standardized commissioning checklist includes 6 calibrated verification steps, reducing first-year backlash deviation by an average of 64%.

Why Partner With Global Industrial Core for Precision Component Intelligence

Global Industrial Core delivers actionable, field-verified intelligence—not generic datasheets. Our technical team includes ISO/IEC 17025-accredited metrologists, ASME B5.48-certified motion control engineers, and NACE-certified corrosion specialists who conduct on-site audits across five foundational engineering pillars.

For your next ball screw procurement, we provide:

• Independent pre-qualification testing against ISO 3408-3, DIN 69051, and JIS B 1192 standards
• Customized specification alignment—mapping your application’s thermal, load, and duty-cycle profile to validated material and preload configurations
• Real-time supplier performance dashboards tracking field-reported backlash drift, lubrication failure rates, and recalibration frequency
• Technical whitepaper integration for your internal engineering review—complete with CE/UL/ISO 13849-1 compliance annotations

Contact GIC today to request a free precision component validation roadmap—including recommended test protocols, documentation requirements, and supplier scoring thresholds tailored to your operational environment.
