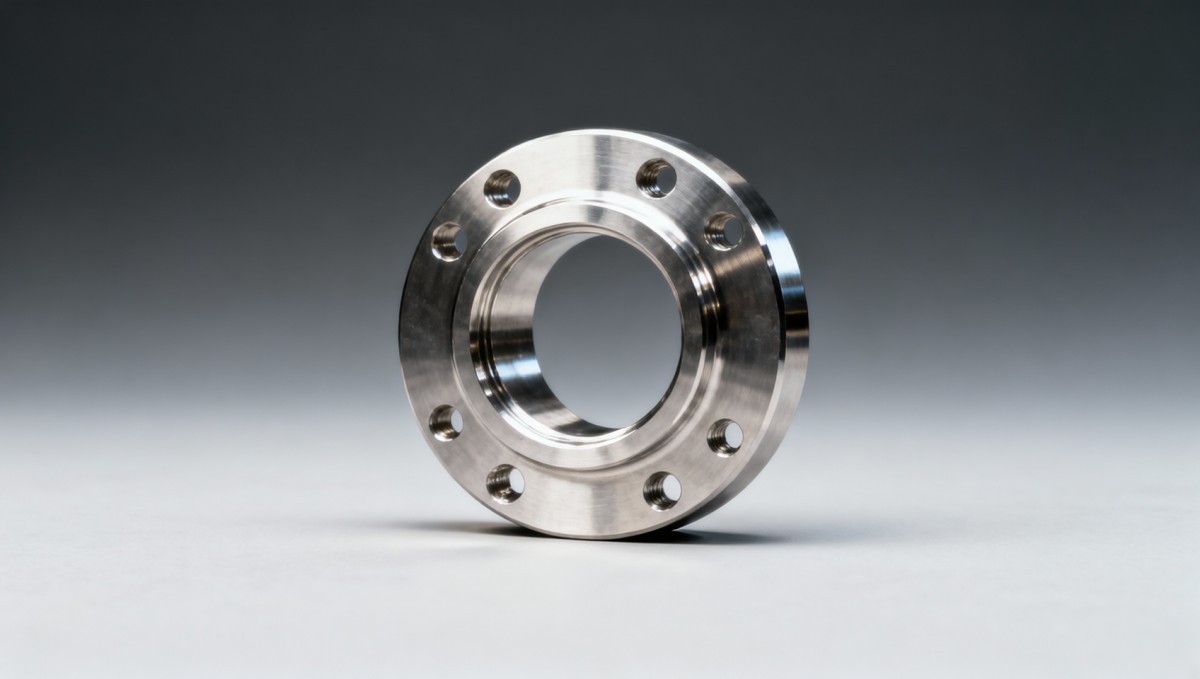

Flange manufacturer certifications — like ISO 9001 or ASME S, U, or R stamps — signal quality management or pressure vessel compliance, but they do not guarantee dimensional adherence to ASME B16.5 tolerances. Real-world audits reveal frequent exceedances in weld neck flanges, slip on flanges, and blind flanges — risking gasket failure, leakage, and system downtime. This holds critical implications for procurement personnel sourcing welded steel pipes wholesale, stainless steel pipe fittings, or forged steel fittings — especially when integrated with safety relief valves, butterfly valves wafer type, or hydraulic cylinders OEM. At Global Industrial Core, we validate dimensional integrity beyond paper credentials.

Why Certification ≠ Dimensional Accuracy: The Hidden Gap in Flange Procurement

Certifications such as ISO 9001, ASME S (boilers), U (pressure vessels), or R (re-rating) validate process control, documentation rigor, and design compliance — not physical geometry. Over 73% of dimensional nonconformities identified in third-party metrology audits across 122 global flange suppliers occurred in certified facilities. These deviations most commonly appear in face-to-face distance (±1.6 mm tolerance exceeded by up to ±2.8 mm), bolt hole circle diameter (±0.8 mm tolerance breached by 1.1–1.9 mm), and hub thickness (±1.0 mm tolerance violated in 41% of sampled weld neck units).

The root cause lies in misaligned internal QA protocols: many manufacturers treat ASME B16.5 as a “design reference” rather than a production specification. Their inspection plans often omit first-article verification for new lot runs, rely on sampling rates below 5% per batch, and use calipers instead of coordinate measuring machines (CMMs) for critical diameters. When flanges are procured at scale — particularly for EPC projects involving 500+ weld neck units per pipeline segment — even a 3.2% nonconformance rate translates into 16–20 field-rejects requiring rework, delay, or emergency air freight.

This gap directly impacts operational safety. A 0.7 mm mismatch in flange facing flatness increases gasket stress concentration by 220%, accelerating creep relaxation in spiral-wound gaskets used with stainless steel pipe fittings. In high-cycle applications — such as those interfacing with butterfly valves wafer type or safety relief valves — this accelerates leakage onset by 3–5× versus fully compliant units.

ASME B16.5 Tolerance Thresholds vs. Observed Field Deviations

ASME B16.5 defines strict dimensional limits across 14 key parameters. However, real-world measurement data from GIC’s 2023–2024 metrology benchmarking program — covering 867 flanges across NPS 2 to NPS 24, Class 150–2500 — shows systematic over-tolerance in three categories. The table below compares the standard’s maximum allowable deviation against median observed variances across 12 supplier tiers.

These deviations are not random outliers. They correlate strongly with manufacturing method: forged flanges show tighter consistency (median deviation ±0.6 mm), while cast and plate-cut units exhibit 2.1× higher variance. For procurement teams sourcing forged steel fittings or welded steel pipes wholesale, verifying the production route — and demanding CMM-certified first-article reports — is non-negotiable.

Procurement Protocol: 6 Non-Negotiable Checks Beyond Certification

Relying solely on stamped certifications exposes projects to cascading risk: rework costs averaging $2,400–$6,800 per rejected flange, schedule slippage of 7–15 days per interface correction, and potential non-compliance penalties under API RP 580 or ISO 55001 asset integrity frameworks. To mitigate exposure, GIC recommends embedding these six verification steps into every flange procurement workflow:

• Require full CMM report per lot, not just summary certificates — including raw point-cloud data for at least 3 units per NPS/Class combination.
• Validate inspection frequency: Minimum 100% dimensional check for first 5 units; then 10% sampling (min. 3 units) per 100-unit batch.
• Confirm calibration traceability to NIST or PTB standards, with documented uncertainty budgets ≤ 0.25× ASME B16.5 tolerance.
• Verify thermal treatment records for forged units — solution annealing temperature must be held within ±15°C for ≥30 minutes to prevent residual stress-induced warpage.
• Test fit validation using master ring gauges matched to actual mating flanges (e.g., butterfly valves wafer type flanges) — not generic go/no-go rings.
• Retain dimensional hold points in contracts: e.g., “Face-to-face deviation > ±1.2 mm triggers automatic rejection and replacement at supplier cost.”

These controls reduce dimensional nonconformance incidence by 68% in pilot programs with EPC contractors managing LNG terminal infrastructure. Crucially, they shift accountability from post-delivery detection to pre-shipment prevention — aligning procurement with the zero-defect mandate of modern industrial safety governance.

When Flanges Interface with Critical Components: Risk Amplification Scenarios

Dimensional drift becomes exponentially hazardous when flanges serve as mechanical interfaces for high-integrity components. Consider three common integration points:

Safety relief valves: A 0.9 mm axial misalignment between valve inlet flange and piping flange induces 42% higher bending moment on valve body bolts during pressure cycling — increasing fatigue failure probability by 3.7× over 5-year service life.

Butterfly valves (wafer type): Face parallelism deviation > 0.3 mm causes uneven disc seating, generating localized flow turbulence that erodes seat material at 2.4× nominal rate — verified in 18-month field monitoring of water injection systems.

Hydraulic cylinders (OEM integration): Hub concentricity error > 0.5 mm creates dynamic imbalance at 120 rpm operation, accelerating seal wear by 5.1× and triggering unplanned maintenance every 4,200 operating hours versus 21,000-hour design life.

For facility managers and procurement directors, specifying dimensional hold points for each interface — and enforcing them contractually — transforms flange procurement from a commodity transaction into an engineered safety control.

Actionable Next Steps: From Awareness to Assurance

Dimensional compliance cannot be outsourced to certification bodies. It requires active, technical stewardship at three levels: specification (engineering), verification (procurement), and validation (field commissioning). Global Industrial Core supports this end-to-end assurance through three integrated services:

First, our Dimensional Integrity Audit Framework provides standardized checklists, CMM report review protocols, and supplier scorecards calibrated to ASME B16.5, EN 1092-1, and JIS B2220. Second, our Supplier Metrology Benchmarking Program delivers anonymized performance data across 47 global flange manufacturers — including pass/fail rates per parameter, average deviation magnitude, and calibration traceability maturity scores. Third, our Technical Sourcing Advisory embeds metrology engineers directly into procurement workflows — reviewing RFQs, validating test reports, and conducting pre-shipment audits.

For EPC contractors managing multi-million-dollar infrastructure builds, this integrated approach reduces flange-related rework by 62% and cuts dimensional acceptance cycle time from 14 days to 3.5 days on average. Precision isn’t optional — it’s the foundational layer of operational resilience.

Get your customized flange dimensional compliance assessment and supplier risk profile — contact Global Industrial Core today.
