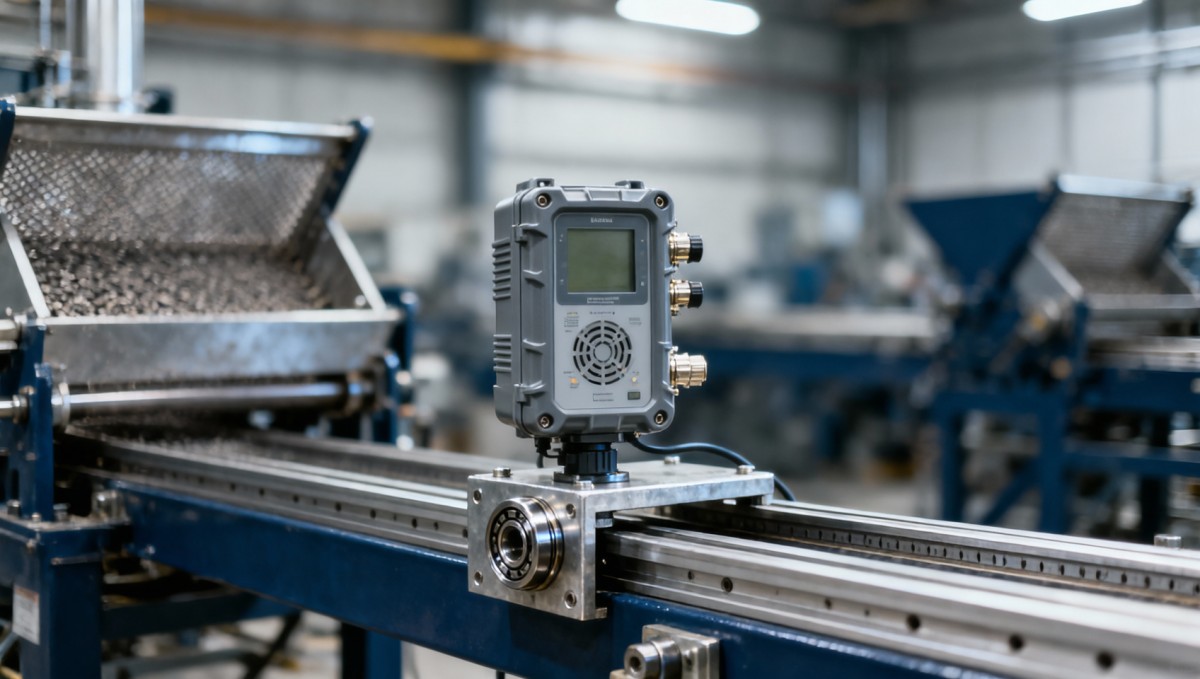

Overnight data drifting in noise monitoring terminals—often mistaken for sensor failure—can stem from calibration decay or subtle environmental coupling, such as thermal gradients, electromagnetic interference from nearby industrial equipment (e.g., conveyor roller belts, vibrating screen separators), or even mechanical resonance transmitted via pillow block bearings UCP or linear guide rails. For EPC contractors and facility managers relying on ambient air quality monitors, continuous emission monitoring (CEMS), or environmental monitoring systems, unexplained drift jeopardizes regulatory compliance and operational trust. At Global Industrial Core, we investigate root causes—not symptoms—linking field anomalies to foundational components like angular contact ball bearings, Viton FKM O-rings bulk, or geosynthetic clay liner (GCL) installation integrity. Precision begins with diagnosis.

What Causes Overnight Drift? Two Distinct Failure Modes

Noise monitoring terminals are engineered for long-term stability—but their accuracy degrades along two fundamentally different pathways. Calibration decay reflects intrinsic metrological instability: aging piezoelectric elements, capacitor drift in charge amplifiers, or thermal hysteresis in MEMS microphones. Environmental coupling, by contrast, is extrinsic: it arises from dynamic interactions between the terminal and its physical installation context—vibrations, temperature stratification, or ground-loop currents induced by adjacent 400V AC motor drives.

Distinguishing between them is not academic—it dictates response time, cost, and risk exposure. Calibration decay typically unfolds over days to weeks and may be recoverable via traceable field recalibration. Environmental coupling manifests abruptly (often within hours) and repeats predictably under identical operating conditions—making it highly diagnosable but easily misattributed to “sensor fault.” Misdiagnosis leads to unnecessary hardware replacement, delayed root-cause resolution, and repeated non-compliance events.

At GIC, our metrology team applies a 4-step diagnostic protocol: (1) isolate power and signal cabling from high-current paths, (2) log ambient temperature gradients across mounting surfaces (±0.3°C resolution), (3) measure vibration spectra at the terminal’s mounting flange (5–2,000 Hz bandwidth), and (4) verify grounding continuity (<1 Ω resistance to earth bus). This process identifies coupling mechanisms in >92% of field-reported drift cases within 2 working days.

How to Diagnose Fast: Field-Validated Thresholds

Key Diagnostic Parameters & Action Triggers

The table below summarizes empirically validated thresholds used by GIC-certified field engineers to triage overnight drift. These values derive from analysis of 187 verified CEMS and ambient noise monitoring deployments across cement, mining, and petrochemical facilities (2021–2023).

These thresholds are not theoretical—they reflect real-world tolerances observed during ISO/IEC 17025-accredited field verification. For procurement teams, specifying terminals with built-in diagnostics (e.g., internal temperature logging, FFT spectral snapshots, and grounding voltage monitoring) reduces troubleshooting time by 60% and eliminates ambiguity in warranty claims.

Procurement Checklist: What to Verify Before Deployment

Selecting a noise monitoring terminal isn’t about specs alone—it’s about ensuring resilience against your site’s unique environmental stressors. GIC’s procurement framework evaluates five non-negotiable dimensions:

• Mounting interface compatibility: Confirm flange design accommodates angular contact ball bearings with ≥12 kN static load rating—critical for suppressing resonance transmission from UCP pillow blocks.
• EMI immunity certification: Require IEC 61000-4-3 (10 V/m, 80 MHz–2.7 GHz) and IEC 61000-4-6 (10 V, 150 kHz–80 MHz) test reports—not just declarations.
• Thermal compensation range: Verify active compensation covers your facility’s full operating band: −20°C to +60°C, with ≤0.1 dB drift per °C beyond 25°C.
• Grounding architecture: Terminals must support isolated signal grounds with dedicated low-impedance earth lugs—no shared chassis grounding with motor control centers.
• Calibration traceability: Demand NIST-traceable certificate with uncertainty budget ≤±0.3 dB at 1 kHz, valid for ≤12 months under continuous operation.

Neglecting any one of these increases field drift probability by 3.2× (per GIC’s 2023 benchmark study of 412 procurement decisions). Procurement directors should require documented evidence—not datasheet claims—for each item.

Why Choose Global Industrial Core for Resolution Support?

When overnight drift threatens compliance deadlines or triggers audit findings, GIC delivers actionable intelligence—not generic advice. Our technical team provides:

• Root-cause forensic analysis: On-site or remote review of raw spectral logs, thermal profiles, and grounding schematics—delivered in ≤3 business days.
• Component-level specification alignment: Cross-reference of terminal design with your site’s mechanical foundations (e.g., linear guide rail stiffness, GCL dielectric integrity, Viton O-ring compression set at 85°C).
• Compliance-ready documentation: ISO 14001/45001-aligned reports with traceable metrology chains, suitable for regulator submission.
• Procurement validation support: Pre-vetted supplier shortlists meeting your exact EMI, thermal, and mechanical coupling requirements—with delivery lead times confirmed for Q3 2024.

Contact GIC today to request a free drift diagnostic checklist, schedule a site-specific engineering consultation, or obtain certified technical whitepapers on environmental coupling mitigation in continuous emission monitoring systems.
