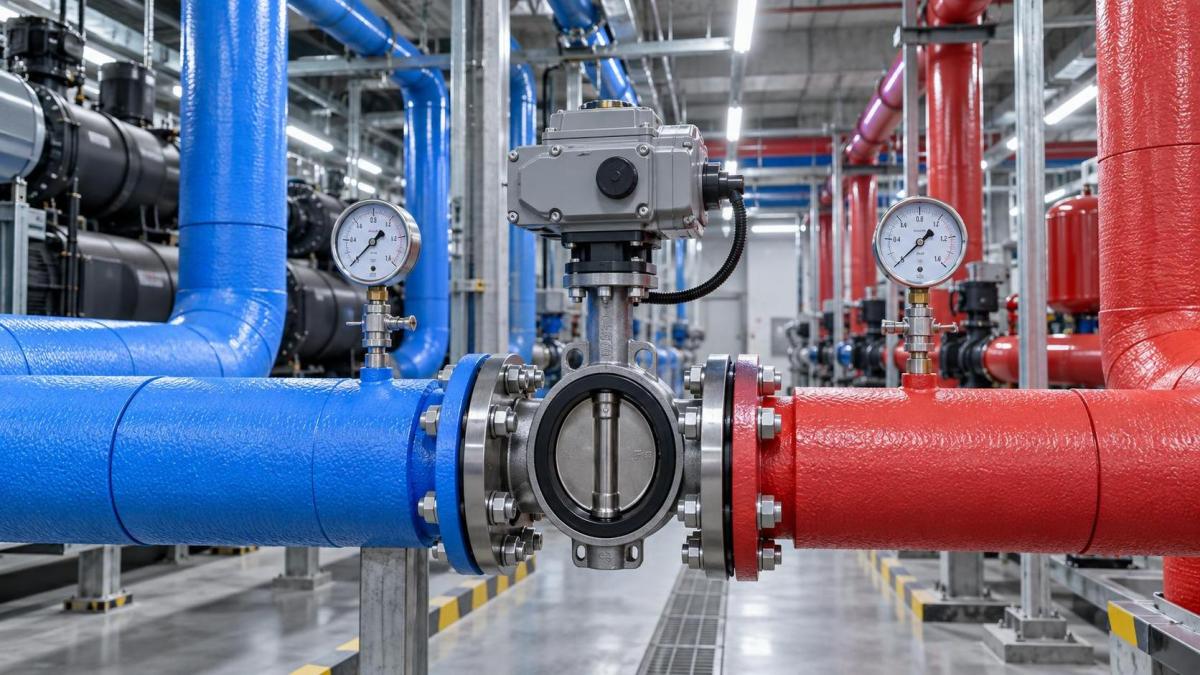

How to Size a Wafer Butterfly Valve for HVAC Chilled-Water and Heating Loops

Sizing a wafer butterfly valve for HVAC chilled-water and heating loops requires more than selecting a valve with the same nominal diameter as the pipe. A valve can fit between flanges perfectly and still create poor control, excessive pumping energy, actuator trouble, leakage at shutoff, or unstable coil temperatures. For technical evaluators, the real task is to match the valve’s hydraulic behavior and mechanical construction to the conditions the loop will actually see—not just its most convenient drawing designation.

This matters particularly in variable-flow systems. Chilled-water plants, heating distribution circuits, air-handling units, fan-coil branches, and process cooling networks can all operate far below design flow for much of the year. A wafer-style butterfly valve that looks adequate at full load may spend most of its working life near the closed position, where small movements produce disproportionately large flow changes. The result is hunting, temperature drift, and complaints that are often blamed on the controls sequence rather than the valve selection.

Start with the valve’s duty, not its pipe size

A wafer butterfly valve is a compact quarter-turn valve installed between pipe flanges. In HVAC work, it may serve as an isolation valve, a manually throttled balancing element, or an automated control valve. Those functions should not be treated as interchangeable. A resilient-seated butterfly valve selected for open/close isolation may be acceptable for line isolation but unsuitable for precise modulating control. Conversely, a characterized control butterfly valve with a matched actuator may be justified on a large main, but it is rarely the most economical way to control a small terminal branch.

Before reviewing a manufacturer’s sizing chart, establish four basic facts: required design flow, expected minimum controllable flow, available differential pressure at the valve, and the valve’s required role. The design flow should come from the hydronic calculation, coil schedule, equipment data, or approved system basis of design. It should not be inferred from nominal pipe diameter. Two pipes of identical size can carry very different flow rates depending on velocity limits, diversity, and the part of the distribution system they serve.

For water applications, flow is commonly expressed in m³/h, L/s, or gpm. Differential pressure must be stated in compatible units, such as kPa, bar, psi, or feet of water. A useful relationship is:

Q = Kv × √ΔP

where Q is flow in m³/h, Kv is the metric flow coefficient, and ΔP is pressure drop in bar for water near standard reference conditions. For Cv-based data, the corresponding convention uses gpm and psi. These equations are useful for an initial check, but they do not replace the supplier’s published flow curves, especially for butterfly valves. Disc geometry, seat design, opening angle, and whether the product is characterized for control all affect the actual installed response.

Pressure drop is a design choice, not a loss to minimize at all costs

A common selection error is choosing the largest possible valve because it promises the lowest pressure drop. In an isolation application, that may be sensible if space, cost, and installation details permit. In a modulating application, an oversized valve often has too much flow capacity. It passes the required flow with only a small disc movement, leaving the controller to operate in a narrow and sensitive portion of the travel range.

Valve authority provides a practical way to assess this problem. In simplified form, authority is the pressure drop across the fully open control valve divided by the pressure drop across the valve plus the rest of the controlled circuit at design flow. If the valve pressure drop is very small compared with the coil, branch piping, and fittings, the valve has weak authority. Its movement has limited influence over the total branch flow, particularly when upstream pressure changes as other valves open and close.

There is no universal authority target that applies to every chilled-water or heating loop. Pump control strategy, pressure-independent devices, terminal unit behavior, and commissioning requirements all matter. Still, the principle is consistent: a valve needs enough pressure drop to control flow predictably, but not so much that it wastes pump head and raises operating cost. Technical evaluators should compare several candidate sizes using actual circuit pressure data rather than accepting the line-size valve by default.

This is also why nominal size and flow coefficient must be reviewed together. The nominal pipe size governs installation compatibility; Kv or Cv indicates hydraulic capacity. A reduced-port or characterized design can sometimes offer better control behavior than a conventional full-bore wafer valve of the same nominal size. The correct decision depends on duty, not on an assumption that “full port” is always superior.

Read the system curve at part load

Full-load sizing alone is incomplete for modern HVAC systems. Many loops spend substantial time at reduced load, with variable-speed pumps responding to differential-pressure setpoints. At low demand, pressure available across a branch valve can rise. A valve that was marginally controllable at design conditions may become aggressive at part load, particularly if the differential-pressure sensor is remote from the affected branch or if pressure-control valves have not been commissioned correctly.

Review the intended valve position at both design and low-flow conditions. If a modulating valve is expected to remain nearly closed during normal low-load operation, verify the inherent characteristic and actuator resolution. Standard concentric-disc butterfly valves generally do not provide the same fine low-lift control behavior as purpose-designed globe valves or characterized rotary valves. That does not disqualify them; it means the application must be appropriate. Large equipment headers, primary distribution lines, and isolation duties often suit wafer butterfly valves well. Small coil-control duties may not.

A useful project question is: what happens when the valve closes while the pump maintains system differential pressure? The answer affects not only control stability but also actuator torque, shutoff reliability, and noise risk. It is especially relevant where a two-way valve is expected to close against a significant differential pressure.

Check close-off pressure and actuator torque as one decision

Valve body pressure rating is not the same as close-off capability. A valve may be rated for a particular maximum working pressure, yet the selected actuator may be unable to drive the disc to the required shutoff position against the maximum differential pressure it will experience. Published torque data should therefore be checked at the stated pressure, temperature, and operating condition.

Butterfly valve torque is influenced by several factors: seat friction, differential pressure across the disc, fluid velocity, stem and bearing friction, cycling frequency, and the effects of temperature on resilient seat materials. A clean, ambient-temperature water test does not necessarily represent a heating loop after years of thermal cycling. Nor does it represent a chilled-water circuit where condensation, insulation practices, and actuator enclosure conditions need attention.

Avoid adding a generic torque “safety factor” without understanding the actuator manufacturer’s rating basis. Instead, obtain the valve torque curve and confirm the actuator’s available torque through the relevant travel range. For modulating service, confirm control signal type, fail position, operating speed, manual override requirements, and the acceptable number of cycles. For critical isolation, clarify whether tight shutoff is needed and under what differential pressure it must be achieved.

Materials must suit the water chemistry and temperature window

In many HVAC installations, the body material receives most of the attention, while the seat, disc, stem, and fasteners determine long-term serviceability. Ductile iron bodies with corrosion protection are widely used, but the suitability of any construction depends on water treatment, glycol concentration where used, expected temperature range, oxygen ingress risk, and local installation environment.

For a chilled-water loop, confirm the minimum and maximum operating temperatures, including abnormal conditions such as seasonal shutdown or glycol-protection scenarios. For heating loops, assess continuous operating temperature as well as higher temperatures during start-up or control failure. Elastomer seats can have different compatibility limits with temperature and treatment chemicals. If glycol, corrosion inhibitors, biocides, or cleaning agents are specified, their compatibility should be confirmed with the valve manufacturer rather than assumed from general material descriptions.

Water quality also affects the disc edge and seat. Debris, magnetite, scale, or welding residue can damage a soft seat and interfere with shutoff. Strainers, flushing plans, and side-stream filtration are system-level measures, but they change the reliability outlook for every valve in the loop. A technically sound valve selection cannot compensate for a dirty system that has never been properly cleaned and commissioned.

Installation geometry can alter real-world performance

Wafer valves are compact, but their installation still requires careful coordination. Verify flange standard, face-to-face dimensions, bolt arrangement, and compatibility with adjacent gaskets and pipework. The disc must be able to rotate freely inside the connected flanges. Not every flange bore or weld-neck configuration provides adequate clearance for every disc design, and blindly mixing components from different standards can create interference or sealing problems.

Orientation is another practical consideration. In horizontal piping, stem orientation can affect access, drainage, actuator clearance, and exposure to condensate. In vertical risers, consider actuator support and the potential consequences of a failed actuator or power loss. Where the valve is used for control, avoid placing it immediately after severe flow disturbances when layout allows. Elbows, pumps, tees, and partially open upstream valves can create turbulence that makes flow behavior less predictable and may contribute to noise or vibration.

The specification should also state whether the valve needs an extended stem, insulated actuator mounting, position feedback, or a weather-resistant enclosure. These are not cosmetic accessories. On chilled-water lines, inadequate insulation coordination can lead to condensation around valve necks and actuators; in plant rooms, service access often determines whether a valve can actually be inspected or replaced without draining an impractical length of pipe.

A disciplined comparison prevents the wrong “equivalent”

When comparing alternatives, evaluate more than nominal diameter, pressure class, and unit price. The following points usually expose whether two offers are truly equivalent:

• Published Kv/Cv values at relevant disc positions, not only at full open.
• Pressure loss at design flow and expected valve authority in the branch or header.
• Maximum differential pressure for tight shutoff and matching actuator torque.
• Body, disc, stem, seat, and fastener materials against the actual fluid specification.
• Flange compatibility, disc-clearance requirements, actuator clearance, and insulation details.
• Required documentation, inspection records, applicable site standards, and maintainability provisions.

This comparison is especially valuable during EPC procurement, where a substitution may be described as technically equivalent while omitting torque curves, control characteristics, or material details that affect the operating duty. The cheapest compliant-looking option can become expensive if it forces field modification, causes unstable flow control, or shortens replacement intervals.

Make the final selection from a complete duty sheet

A defensible wafer butterfly valve for HVAC selection should be traceable to a clear duty sheet. At minimum, include fluid composition, design and minimum flow, normal and maximum differential pressure, operating and design temperatures, pipe and flange details, valve function, shutoff expectation, actuator requirements, installation location, and project documentation requirements. If flow control is involved, include the available pressure range across the valve rather than only the nominal system pressure.

For large chilled-water and heating systems, this discipline helps distinguish an appropriate wafer butterfly valve from a valve that merely appears to fit the line. Global Industrial Core’s technical sourcing perspective is straightforward: ask suppliers to show the hydraulic and mechanical basis for the proposed selection, then compare it against the actual loop conditions. A valve schedule becomes far more reliable when each line item can answer three questions clearly—what flow must it handle, what pressure differential must it withstand, and how must it behave after installation.

If any of those answers remains uncertain, resolve it before the purchase order. In hydronic systems, sizing assumptions tend to travel downstream into commissioning, controls tuning, and maintenance. Correcting them on paper is usually far easier than correcting them in a live plant room.
