A dual block PCR cycler sits at a useful point between routine thermal cycling and workflow flexibility. Instead of forcing every reaction into one shared temperature program, it allows two independent protocols to run at the same time.

That matters when sample types, primer sets, and urgency levels do not line up neatly. In laboratories tied to industrial quality control, environmental monitoring, or applied biosurveillance, time lost to queueing can quickly become an operational issue.

From the perspective of Global Industrial Core, instruments & measurement decisions are rarely only about speed. They also affect traceability, repeatability, resource use, and how reliably a site can turn test data into action.

Why the two-block design draws attention

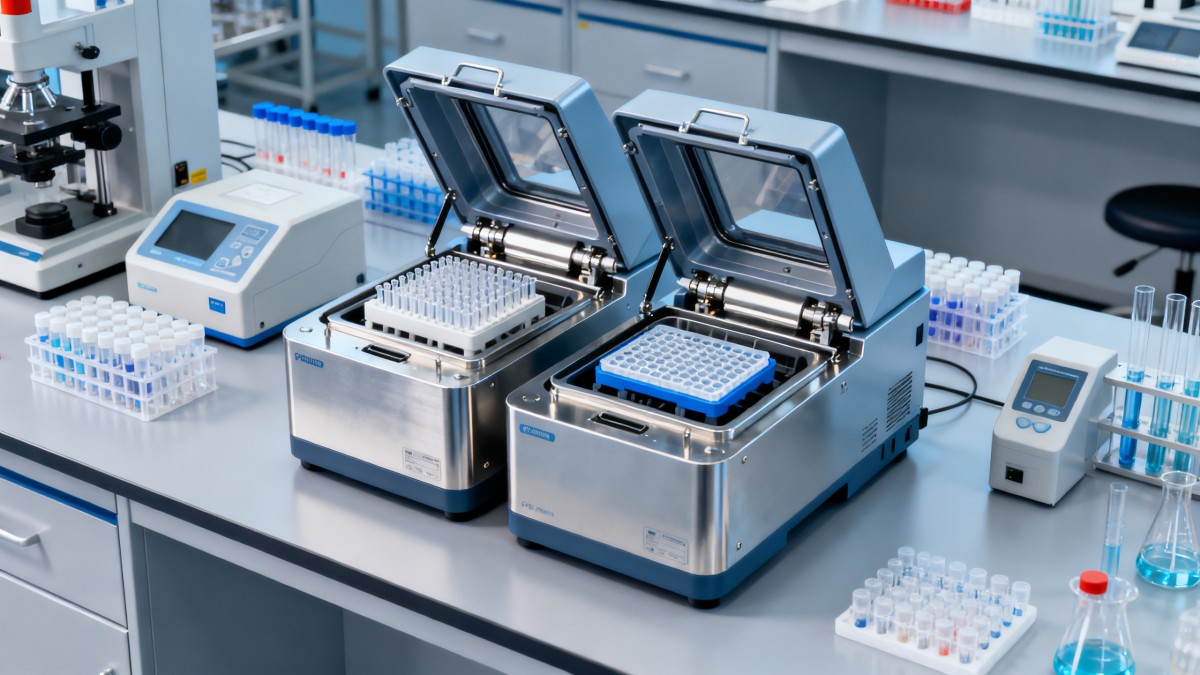

A standard thermal cycler heats and cools reaction wells through repeated denaturation, annealing, and extension steps. A dual block PCR cycler follows the same basic amplification logic, but divides the instrument into two physically separate thermal zones.

Each block has its own program control. That means one side can run a fast screening assay while the other handles a longer optimization cycle.

In practice, this is less about novelty and more about reducing idle capacity. A single-block unit often performs well in uniform workflows, but becomes restrictive when daily testing includes mixed assay requirements.

The current interest also reflects broader lab pressure. Facilities are expected to process more samples, document more rigorously, and avoid unnecessary equipment duplication.

How a dual block PCR cycler works in simple terms

At the hardware level, the instrument contains two independently regulated sample blocks. Each block holds tubes, strips, or plates, depending on format.

Thermoelectric modules, usually based on Peltier elements, drive rapid heating and cooling. Sensors monitor block temperature and feed data to the control system.

The lid remains heated to reduce condensation and maintain reaction volume consistency. Software lets the operator assign a separate cycling profile to each block.

One program may use a lower annealing temperature for a difficult primer pair. The second may run a validated routine method with fixed hold times and tighter timing expectations.

This independence is the key difference. A dual block PCR cycler does not simply split one large run into two halves. It supports parallel thermal cycling under distinct conditions.

What remains the same

The biological principle does not change. DNA amplification still depends on clean templates, suitable primers, stable reagents, and disciplined contamination control.

A two-block design improves scheduling flexibility, but it does not compensate for weak assay design or poor sample preparation.

Where two blocks create real operational value

The strongest case appears when the testing calendar is varied rather than uniform. Not every site needs a dual block PCR cycler, but several settings benefit quickly.

In industrially linked labs, this can support faster release checks, contamination investigations, and verification testing. The advantage is often measured in fewer bottlenecks rather than dramatic cycle-time reduction.

What operators should evaluate before relying on one

The phrase dual block PCR cycler sounds straightforward, but performance differences between models can be meaningful. Two blocks matter only when the instrument remains accurate across both sides.

Temperature consistency

Uniformity within each block is critical. Small deviations can shift amplification efficiency, especially in assays with narrow annealing tolerance.

Ramp rate also deserves attention, but faster is not always better. Excess speed can be less useful than stable, reproducible thermal transitions.

Control and documentation

A good system should make it easy to assign protocols clearly, store methods securely, and export run records. In regulated or audited environments, documentation quality matters as much as amplification success.

Consumable compatibility

Tube and plate fit should be checked carefully. Poor contact between vessels and the block can create temperature variation that looks like an assay problem.

Workflow fit

A dual block PCR cycler is most valuable when scheduling conflicts are common. If all runs use nearly identical protocols, one larger block may be simpler to manage.

Common use cases beyond basic research

The technology is often discussed in life science terms, yet the operational logic extends well beyond academic settings. That is why it fits naturally inside a broader instruments & measurement conversation.

Applied testing labs may use a dual block PCR cycler for microbial screening, contamination tracing, or raw material verification. Environmental programs may separate routine trend monitoring from event-driven confirmation testing.

Food, water, and industrial hygiene workflows can also benefit when one assay panel is stable and another changes frequently. Two blocks reduce the penalty of that variation.

This matters in the wider GIC context because resilient infrastructure depends on reliable measurements. Even a compact lab instrument can influence safety decisions, maintenance timing, and compliance reporting.

Where mistakes usually appear

Most problems are not caused by the two-block concept itself. They come from assumptions that flexibility automatically guarantees better output.

• Running too many assay types without clear naming conventions can create protocol selection errors.
• Uneven loading between blocks may complicate planning when urgent tests arrive mid-cycle.
• Skipping verification across both blocks can hide side-to-side performance differences.
• Using flexibility to avoid method standardization often increases variability instead of reducing it.

A disciplined setup helps more than extra features. Clear SOPs, labeled protocols, maintenance logs, and periodic temperature verification remain central.

A practical way to decide whether two blocks matter

The decision is easier when framed around workload patterns rather than instrument marketing. Three questions usually reveal the answer.

• How often do different assays compete for the same cycler during a typical week?
• How often does urgent testing interrupt routine schedules?
• How costly is waiting, in time, staffing, reporting delay, or retesting risk?

If those pressures are frequent, a dual block PCR cycler can improve utilization without adding another full instrument. If not, the added flexibility may sit mostly unused.

The next step is usually comparative evaluation. Review protocol mix, required throughput, thermal accuracy specifications, data handling, and verification support before setting a standard.

That approach aligns with how GIC examines industrial instrumentation: start with the operating reality, test the claims against measurable performance, and build a selection framework that holds up under daily use.
