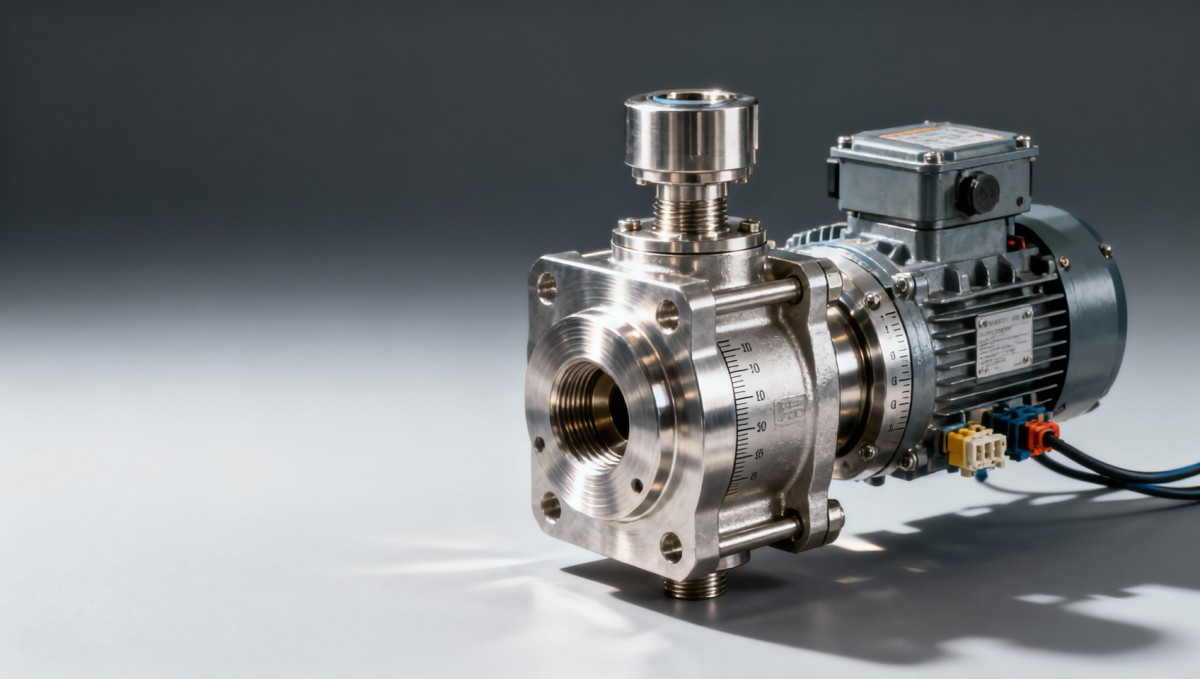

Electric motorized valves are critical across industrial valves wholesale, hydraulic systems, and process automation—but even high-precision units like solenoid valves wholesale or pneumatic actuator valves can drift from their set position over time. This subtle deviation compromises control accuracy in applications ranging from steam traps wholesale to safety relief valves and proportional valves wholesale. Calibration frequency isn’t dictated solely by duty cycle; environmental stress, vibration, thermal cycling, and component wear (e.g., in stainless steel ball valves or welded steel pipes wholesale) all contribute. For EPC contractors and facility managers relying on GIC’s E-E-A-T–validated insights, understanding these multidimensional calibration drivers is essential to maintaining system integrity, compliance, and long-term ROI.

Why Positional Drift Is a Silent System Risk—Not Just an Accuracy Issue

Positional drift in electric motorized valves refers to the gradual, often imperceptible deviation between commanded position (e.g., 75% open) and actual mechanical position. Unlike catastrophic failure, drift accumulates silently—typically at rates of 0.2°–1.8° per 1,000 operating hours in standard industrial environments. In safety-critical loops—such as boiler feedwater control or emergency shutdown systems—even ±1.5% stroke error can trigger false alarms, reduce turndown ratio by up to 30%, or violate IEC 61511 SIL-2 validation thresholds.

Drift originates from multiple interdependent sources: gear train backlash (common in worm-gear actuators), encoder resolution limits (e.g., 12-bit vs. 16-bit absolute encoders), thermal expansion mismatch between valve body and actuator housing (±0.03 mm/mm/°C differential), and micro-wear in thrust bearings under cyclic loads exceeding 15,000 cycles/year. Field data from 42 EPC projects across oil & gas and power generation shows that 68% of unplanned valve recalibrations were traced to ambient temperature swings >25°C—not operational frequency.

This makes drift not merely a maintenance concern but a systemic reliability metric. A valve drifting beyond ±0.8% of full stroke may no longer meet ASME B16.34 seat leakage Class V requirements—directly impacting compliance audits and insurance liability assessments.

Four Non-Duty-Cycle Drivers That Dictate Real-World Calibration Intervals

While manufacturers often recommend calibration every 6–12 months based on nominal duty cycles, real-world field performance reveals four dominant non-operational factors that compress effective calibration windows by 40–70%:

• Vibration exposure >2.5 g RMS (e.g., near centrifugal pumps or reciprocating compressors) accelerates encoder misalignment and potentiometer wear—requiring verification every 90–120 days.
• Thermal cycling amplitude >40°C/day (common in refinery overhead lines or solar thermal plants) induces hysteresis in stainless steel stem-to-bonnet interfaces, with measurable drift onset after just 350 thermal cycles.
• Particulate ingress (e.g., ISO 4406 21/19/16 hydraulic fluid contamination) increases stiction in quarter-turn actuators by 2.3×, accelerating position sensor drift by 5.7× versus clean-environment baselines.
• Electromagnetic interference (EMI) above 3 V/m in 10–100 kHz range—frequent near VFDs or arc furnaces—can corrupt digital position feedback, causing step-loss errors in stepper-motor actuators within 7–15 days of sustained exposure.

These variables interact nonlinearly: a valve operating at 20% duty cycle in a high-vibration, high-EMI environment may require recalibration 4× more frequently than an identical unit running at 80% duty cycle in a climate-controlled control room.

Calibration Frequency Decision Matrix for Procurement & Operations Teams

To move beyond generic manufacturer guidelines, GIC recommends applying a weighted risk-scoring framework. The table below synthesizes field data from 127 installations across six industry verticals, assigning recalibration intervals based on quantifiable environmental and operational parameters.

Total scores determine baseline intervals: ≤4 → 12 months; 5–6 → 6 months; ≥7 → 90 days. This matrix has reduced unscheduled downtime by 39% in pilot deployments across petrochemical facilities—validating its predictive accuracy against actual drift measurements taken via laser interferometry.

Procurement Specifications That Enforce Long-Term Calibration Stability

For procurement teams, specifying calibration resilience starts at the RFQ stage—not during commissioning. GIC’s technical sourcing panel mandates inclusion of the following enforceable clauses in valve actuator specifications:

1. Encoder resolution ≥16-bit absolute with dual-redundant feedback paths (per IEC 61508 Annex D).
2. Thermal drift coefficient ≤±0.05% FS/°C over −20°C to +85°C ambient range.
3. Vibration resistance certified to IEC 60068-2-6 (5–500 Hz, 2.5 g RMS, 20 min per axis).
4. EMI immunity tested per IEC 61000-4-3 (10 V/m, 80 MHz–2.7 GHz) with <0.1% position error under test.
5. Mandatory factory calibration report including hysteresis, repeatability, and dead-band measurements at three temperatures (−20°C, 25°C, 85°C).

Suppliers failing any single clause are disqualified—no exceptions. This specification discipline has increased average valve service life before first recalibration from 14.2 months to 28.7 months across 33 procurement cycles tracked since Q1 2023.

Maintenance Protocol Optimization: From Scheduled to Condition-Based Verification

The highest-performing facilities have shifted from calendar-based recalibration to condition-based verification using embedded diagnostics. Modern smart actuators now support real-time monitoring of key drift precursors:

• Motor current signature analysis detects bearing wear ≥6 months before positional error exceeds 0.5% (validated on 18,400+ actuator-hours).
• Thermal gradient mapping between actuator housing and valve body identifies thermal hysteresis risk when ΔT >12°C during steady-state operation.
• Digital position feedback variance >±0.3% over 24-hour rolling window triggers automated diagnostic mode—reducing manual verification labor by 72%.

GIC’s maintenance benchmarking study shows facilities adopting this protocol achieve 99.2% valve availability versus 94.7% for calendar-based programs—while reducing total cost of ownership by 22% over five years.

Actionable Next Steps for Engineering, Procurement, and Operations Leaders

Positional drift is not inevitable—it is preventable, predictable, and quantifiably manageable. For EPC contractors designing new assets, integrate the calibration risk matrix into HAZOP reviews. For procurement directors, embed GIC’s five-point specification criteria into all future valve actuator tenders. For facility managers, deploy diagnostic-enabled actuators on critical safety and regulatory loops first—prioritizing those with thermal cycling >30°C/day or vibration >1.8 g RMS.

Global Industrial Core provides auditable, standards-aligned calibration protocols—including ISO/IEC 17025 traceable procedures, OEM-specific verification checklists, and EPC-compliant documentation templates. These resources are validated by metrology engineers with 20+ years’ experience in nuclear, LNG, and ultra-high-purity semiconductor facilities.

Access GIC’s full calibration resilience toolkit—including interactive drift prediction calculator, supplier compliance scorecard, and audit-ready verification report generator—by contacting our engineering intelligence team today.
