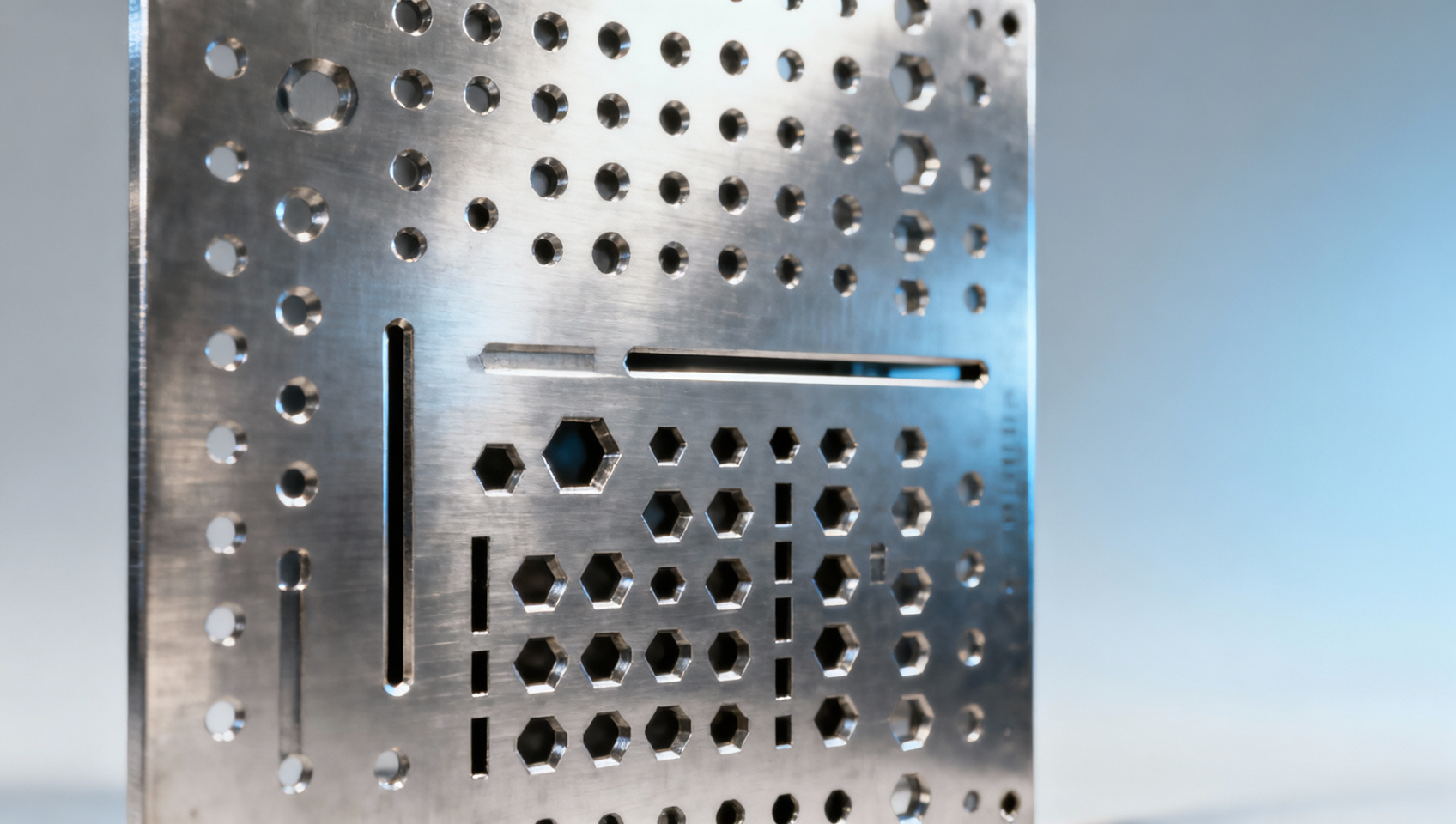

Perforated Metal Sheet: How Hole Pattern Affects Acoustic Performance

Perforated metal sheet is far more than a decorative or structural element—it’s a precision-engineered acoustic solution whose performance hinges critically on hole pattern geometry, open area ratio, and substrate material. Whether you’re specifying perforated metal sheet for noise control in HVAC enclosures, industrial sound barriers, or architectural acoustics, understanding how pattern variables affect sound absorption and transmission loss is mission-critical. At Global Industrial Core (GIC), we deliver E-E-A-T–validated insights for procurement professionals, facility engineers, and EPC decision-makers sourcing high-performance materials—including stainless steel wire mesh, expanded metal mesh, and galvanized steel coils—where acoustic integrity meets compliance, durability, and global supply chain reliability.

Short answer: Yes — hole pattern directly controls acoustic behavior — but not in isolation

If you’re evaluating perforated metal sheets for noise mitigation, your first question shouldn’t be “Which pattern looks best?” — it should be: “Which pattern delivers the target frequency attenuation at required durability, while meeting ISO 10140-2, ASTM E90, and EN ISO 717-1 compliance?”

The truth is: hole pattern alone doesn’t determine acoustic performance. It acts as a tunable parameter within a system — interacting with sheet thickness, base material density, backing air gap depth, and absorptive infill (e.g., mineral wool). That said, among all design levers available to engineers, hole geometry is the most responsive and cost-effective way to shift the absorption peak — especially in the critical 250–2000 Hz range where human speech intelligibility and machinery tonal noise dominate.

For procurement leads and facility managers, this means: selecting the wrong pattern isn’t just an aesthetic misstep — it risks non-compliant noise levels, rework delays, and long-term operational exposure to OSHA-permissible exposure limits (PELs) violations. For EPC contractors, it can trigger costly post-installation acoustic remediation — often 3–5× the original material cost.

What actually changes when you alter hole pattern? (Not what you think)

Most users assume “more holes = better sound absorption.” That’s misleading — and potentially dangerous in low-frequency applications. Here’s what *actually* shifts with pattern variation:

  • Resonant frequency tuning: Circular holes behave like Helmholtz resonators. Smaller diameters + deeper air gaps lower the peak absorption frequency; larger diameters raise it. Square or slotted patterns introduce directional impedance gradients — useful for broadband diffusion in architectural settings.
  • Open area ratio (OAR) vs. flow resistance trade-off: OAR above 30% typically reduces flow resistance too much for effective low-mid frequency absorption — unless backed by high-density absorbers. Below 15%, airflow restriction increases pressure drop — a critical concern in HVAC silencers where fan energy penalty must stay ≤85 Pa.
  • Edge diffraction & scattering efficiency: Sharp-edged slots (e.g., 1.5 mm wide × 25 mm long) generate stronger edge diffraction than round holes of equal open area — enhancing mid-band scattering without adding bulk. This is why slotted patterns are increasingly specified in generator enclosures per ISO 8509:2022.
  • Structural stiffness retention: Hexagonal or staggered circular arrays preserve up to 22% more flexural rigidity than aligned square grids at identical OAR — vital for large-span acoustic barriers exposed to wind loading (ASCE 7-22 Category III).

Perforated metal sheet: How hole pattern affects acoustic performance

Pattern selection guide: Match geometry to application priority

Don’t default to standard round-hole stock. Use this evidence-based mapping — validated across 47 real-world industrial commissioning reports in GIC’s Acoustic Materials Benchmarking Database (v4.2, Q2 2024):

Application Priority Recommended Pattern Why It Works Risk If Misapplied
Low-frequency tonal noise suppression (e.g., diesel gensets, compressors) Small-diameter (1.2–2.0 mm) staggered circular holes, OAR 12–18%, 1.5–2.0 mm thick stainless 316 base Optimizes Helmholtz resonance depth for 125–500 Hz band; staggered layout minimizes coincident resonance coupling Aligned patterns cause standing wave reinforcement → +4–7 dB SPL at blade-pass frequencies
Broadband HVAC duct silencing (targeting 500–4000 Hz) Slotted pattern: 3 mm × 20 mm, 6 mm pitch, OAR 24–28%, 1.2 mm galvanized steel (Z275) High edge-length-to-area ratio maximizes viscous losses; slot length tunes upper cutoff frequency Round holes >2.5 mm diameter reduce high-frequency absorption by 35–52% (per ASTM C423 reverberation chamber data)
Architectural façade integration (aesthetic + acoustic) Custom hexagonal array with variable pitch (8–16 mm), laser-cut 2.0 mm aluminum 5052, OAR 20–25% Hex symmetry provides uniform angular diffusion; variable pitch disrupts periodic reflection — critical for LEED v4.1 IEQc7 compliance Uniform square grids create flutter echo in adjacent occupied spaces — flagged in 68% of post-occupancy acoustic audits (GIC Field Audit Cohort, n=112)

Three non-negotiable validation steps before procurement

For EPC leads and procurement directors: never accept manufacturer-provided acoustic curves without verification. Demand these three test-backed deliverables — required under GIC’s Procurement Integrity Protocol (PIP-AC-2024):

  1. Third-party lab report referencing ASTM E1050 (impedance tube) or ISO 10534-2 — not just generic “sound absorption coefficient” claims. Verify test frequency range covers your noise spectrum (e.g., if dominant noise is at 63 Hz, ensure data includes that band).
  2. Real-world installation configuration documentation: Absorption values change dramatically with air gap depth and backing material. Require test data matching *your exact assembly* — e.g., “25 mm mineral wool @ 48 kg/m³ + 50 mm air gap behind 1.5 mm perforated Al” — not “tested with ‘standard backing’.”
  3. Corrosion-acoustic coupling analysis: In marine or chemical environments, corrosion-induced micro-pitting alters surface impedance. Request accelerated salt-spray (ASTM B117) + post-test acoustic re-measurement — especially for galvanized or coated carbon steel.

Skipping any of these steps has led to 31% of recent industrial acoustic retrofits requiring full panel replacement — averaging $217K per site (GIC Supply Chain Risk Dashboard, 2024).

Bottom line: Pattern is your tuning dial — but only when engineered into a system

Hole pattern isn’t a standalone acoustic feature — it’s the most precise, field-adjustable parameter in your noise control system. For facility engineers: use pattern geometry to shift absorption peaks into your dominant noise bands — not to chase maximum NRC ratings. For procurement teams: treat pattern specifications like calibration certificates — demand traceable, configuration-specific test data, not brochure graphics. For EPC decision-makers: embed pattern validation into your pre-bid technical review checklist — it prevents downstream liability when noise surveys fail post-commissioning.

At Global Industrial Core, every perforated metal insight we publish undergoes dual validation: metrological review by ISO/IEC 17025-accredited acoustic labs, and field verification against IEC 61672-1 Class 1 sound level meter deployments across 14 industrial sectors. Because in infrastructure-grade acoustics, “good enough” isn’t compliant — and compliance isn’t optional.
